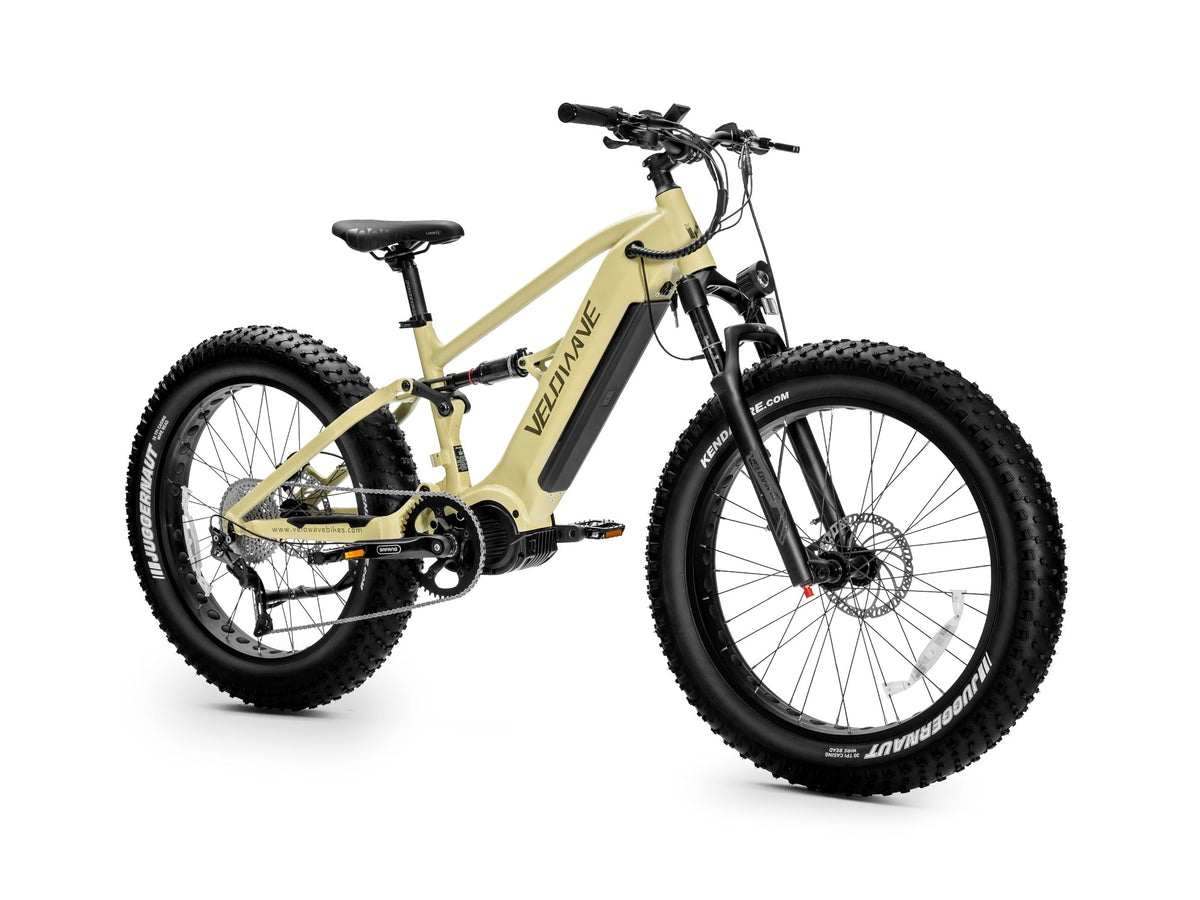

Olive Green Brawny XM front three-quarter studio view with air fork, headlight and disc rotor

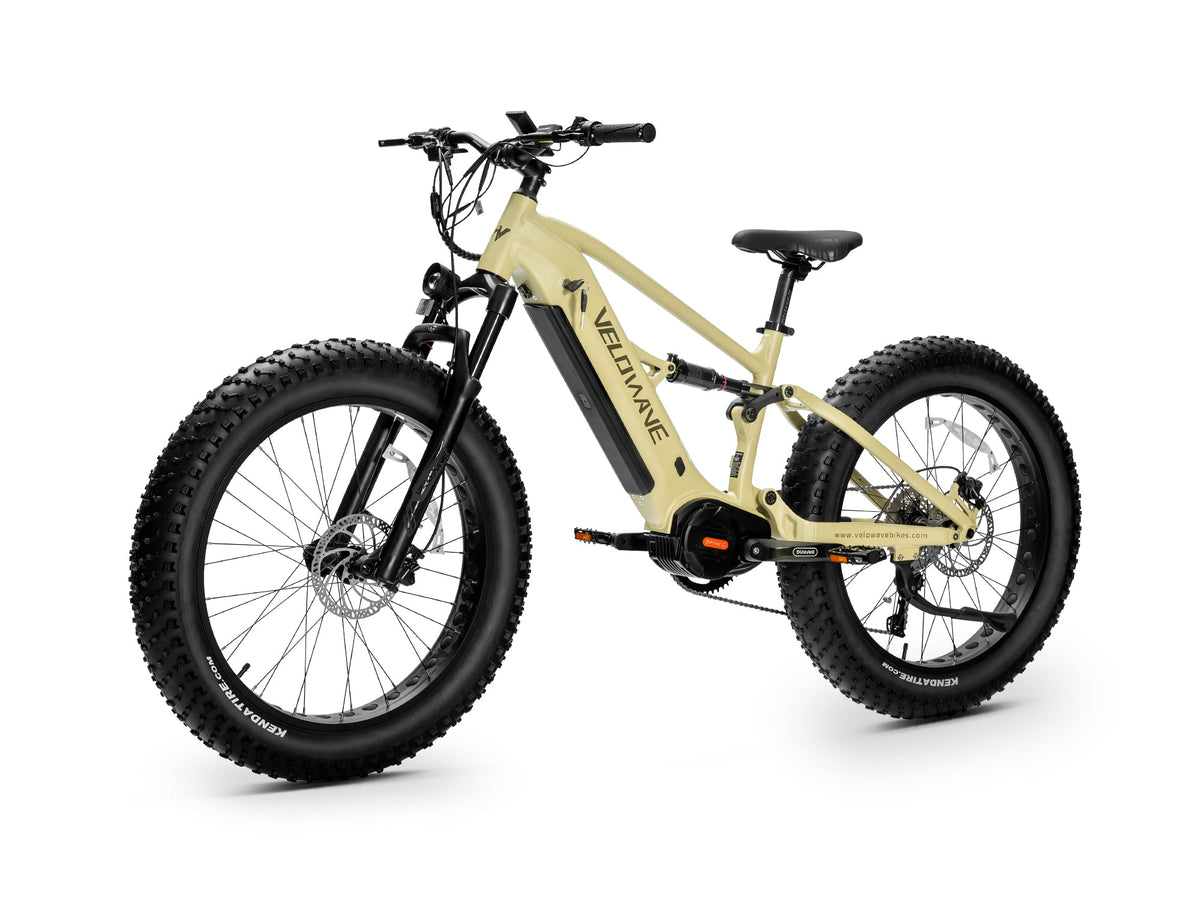

Olive Green Brawny XM rear three-quarter studio view showing rear shock and drivetrain

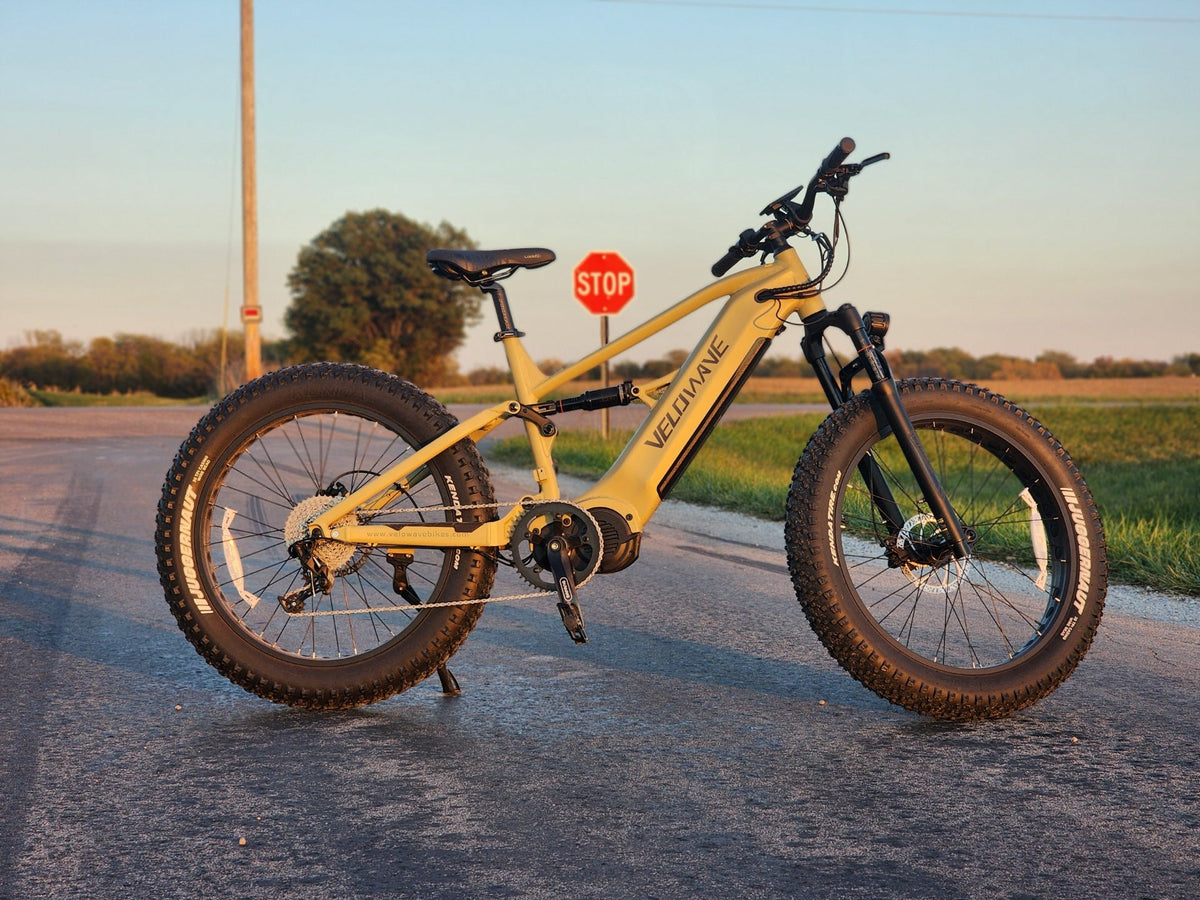

Olive Green Brawny XM parked beside a road at sunset with a stop sign behind it

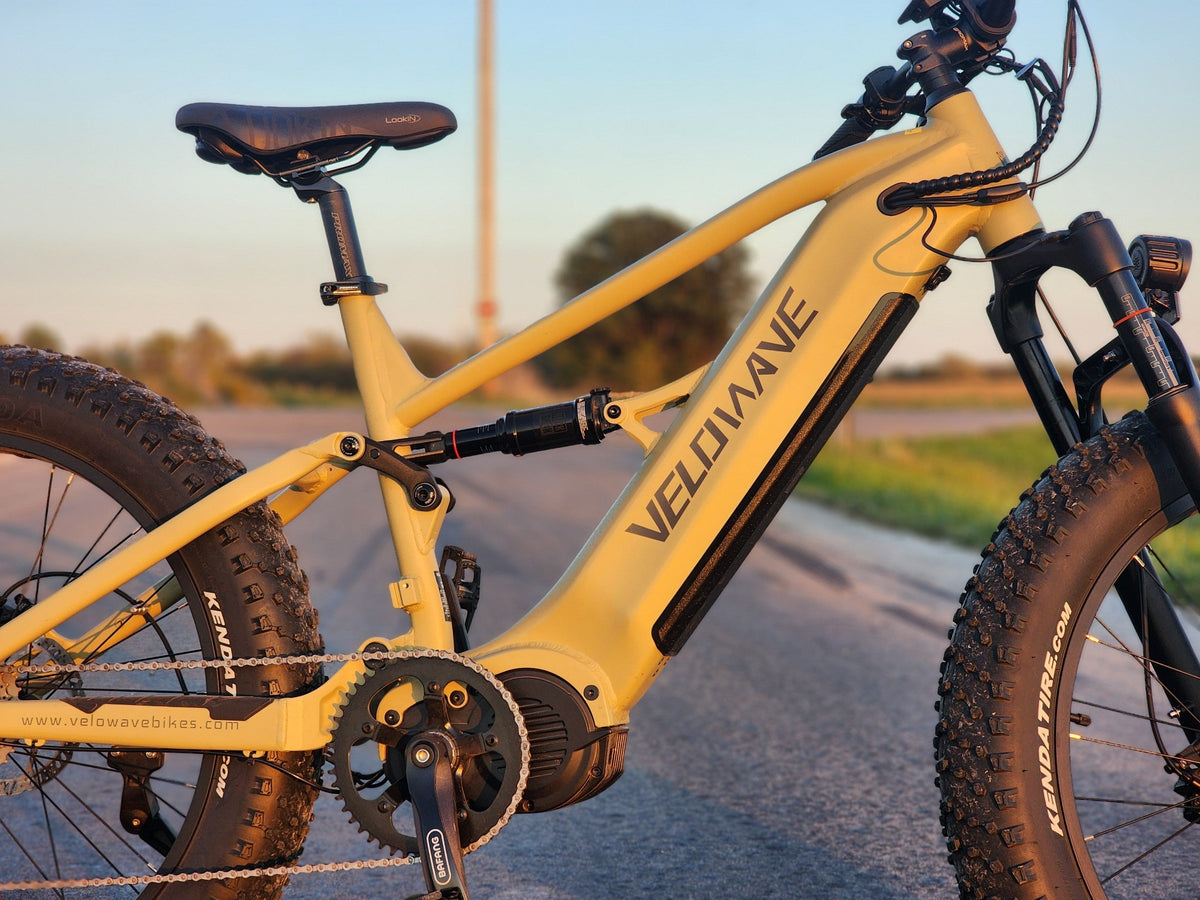

Close view of Olive Green Brawny XM frame, removable battery, mid-drive and rear suspension

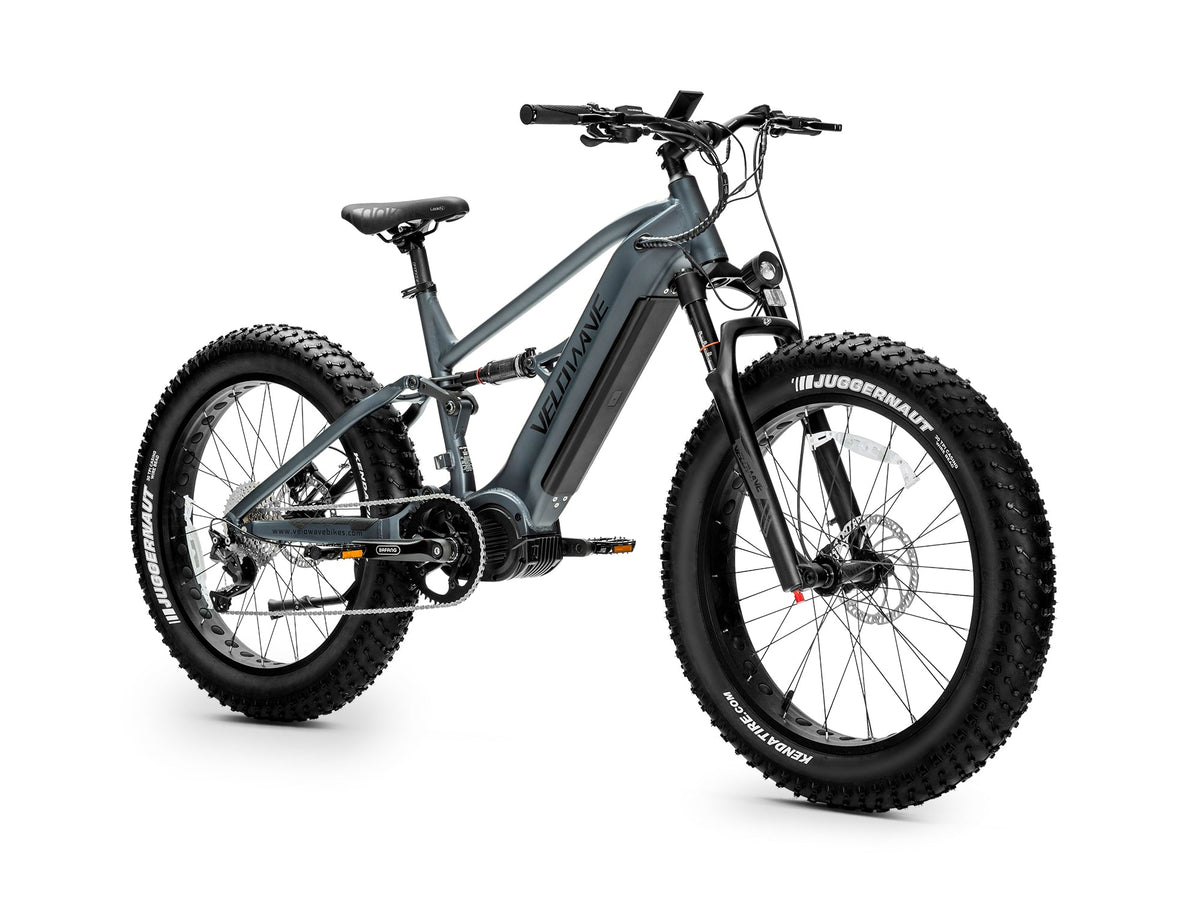

Dark Blue Brawny XM front three-quarter studio view with air fork, headlight and front disc brake

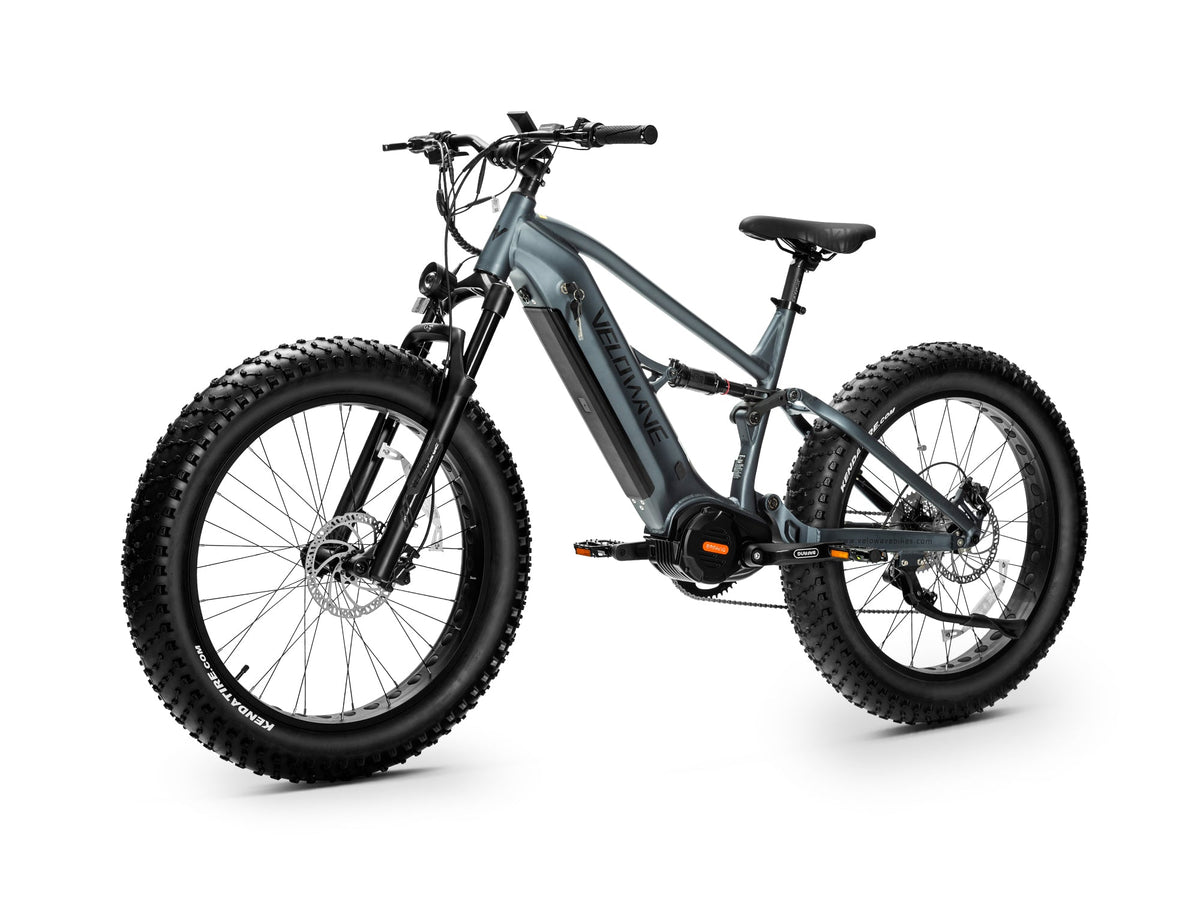

Dark Blue Brawny XM rear three-quarter studio view showing rear shock, cassette and derailleur

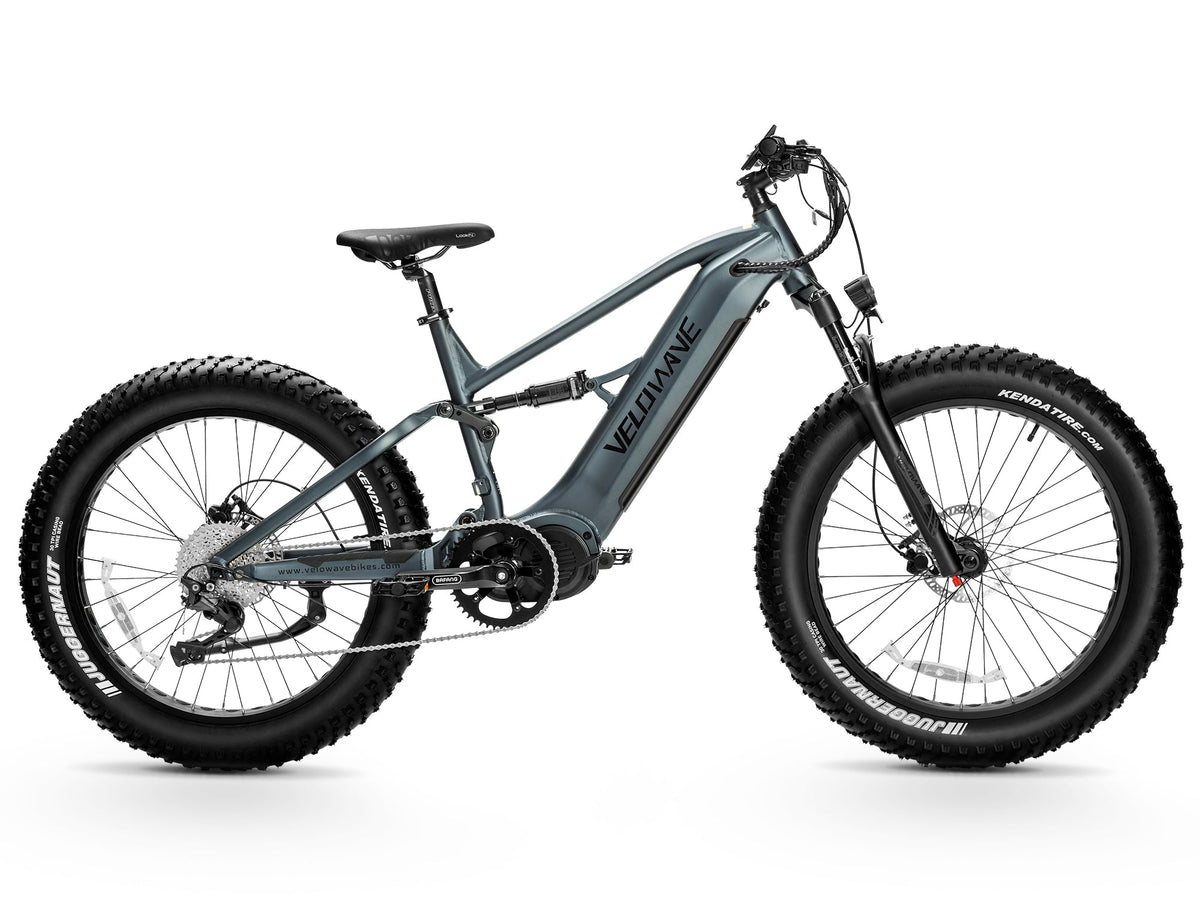

Dark Blue Brawny XM left-side studio view with keys in the frame battery lock

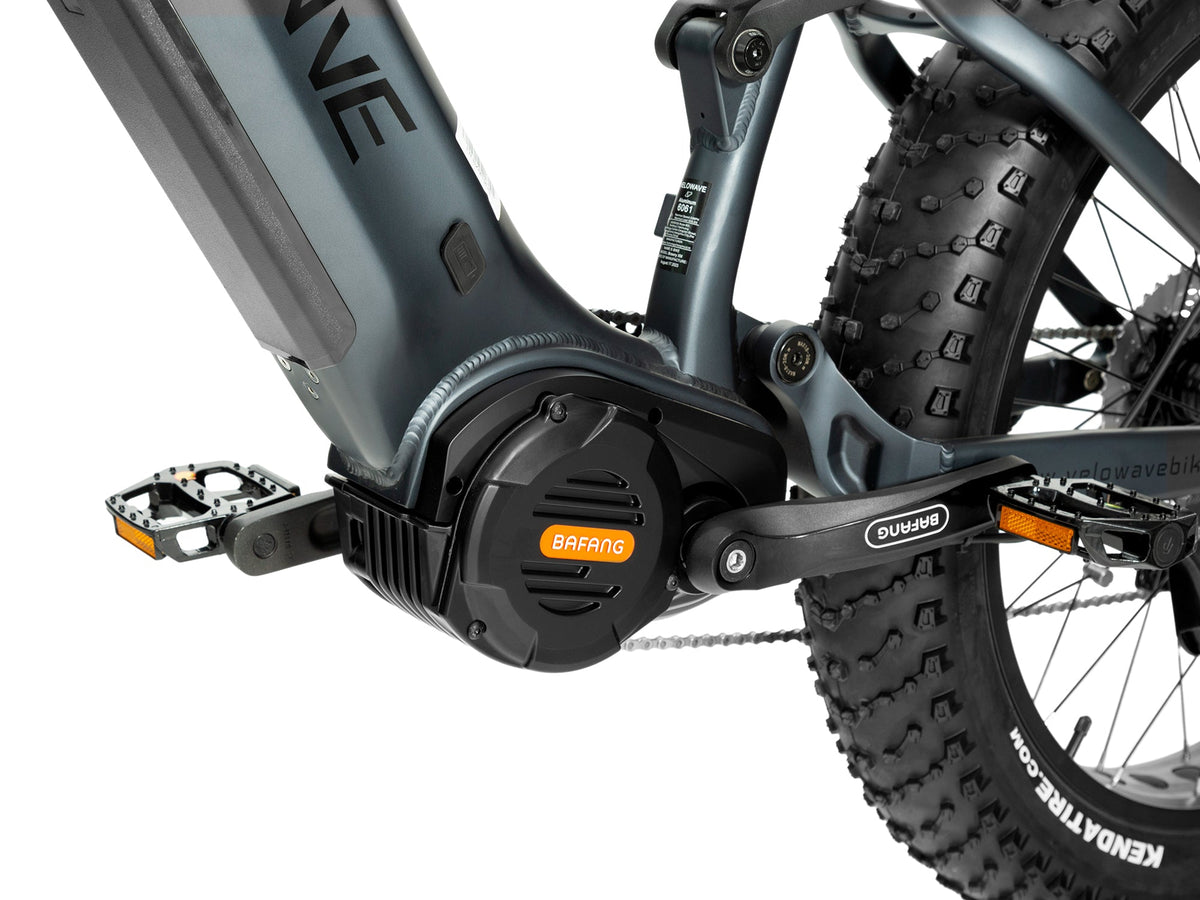

Close view of Dark Blue Brawny XM Bafang mid-drive, crank and knobby rear tire

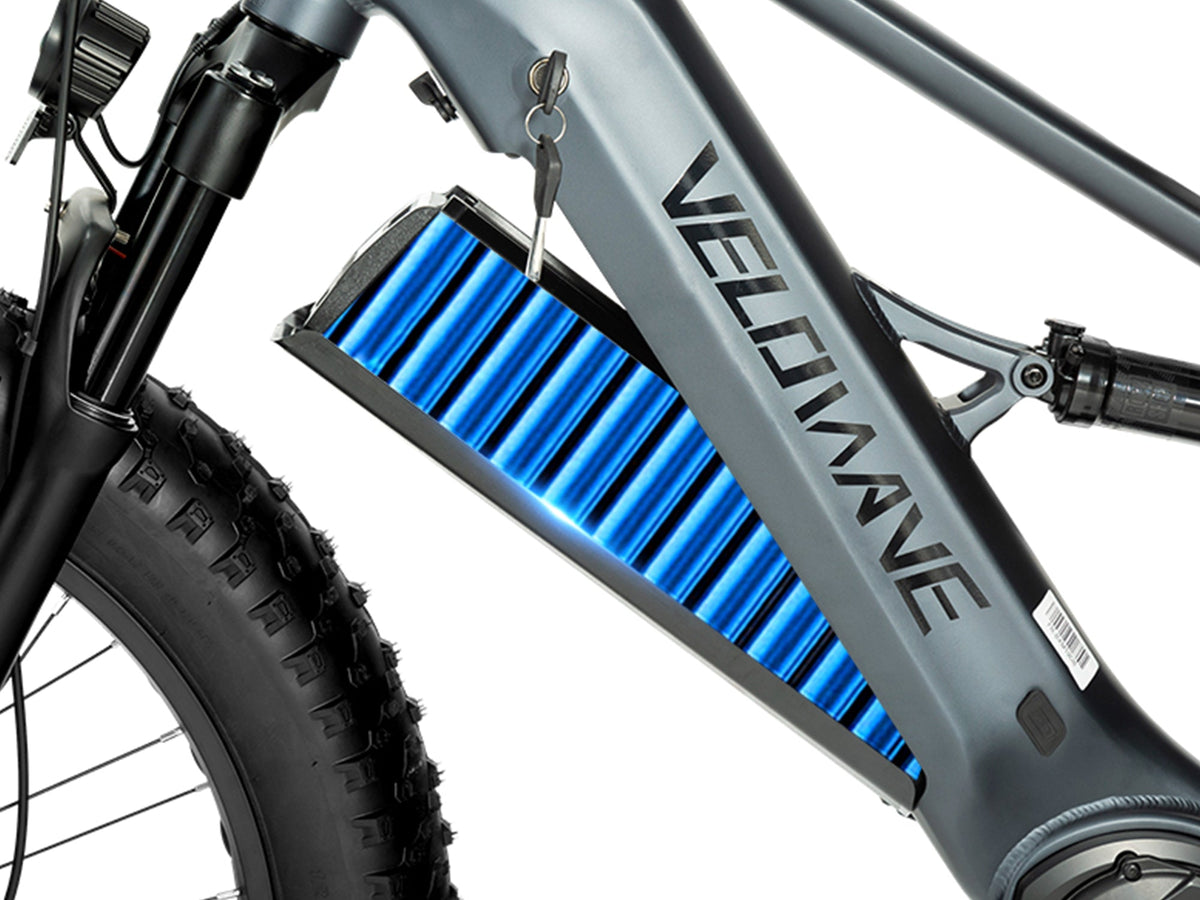

Dark Blue Brawny XM battery pack shown removed from the frame beside the front fork

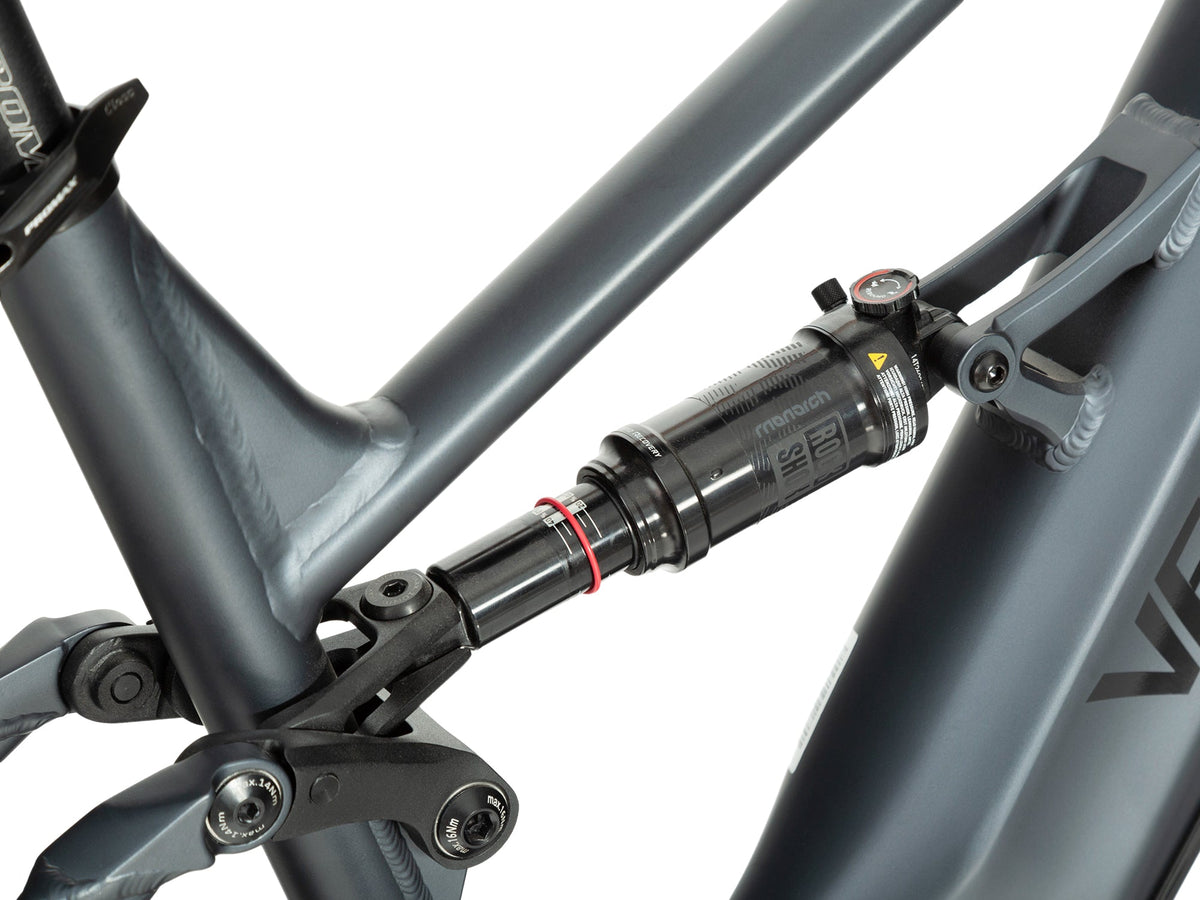

Close view of Dark Blue Brawny XM RockShox rear shock and suspension linkage

Velowave Brawny XM Full-Suspension Electric Bike

Name: Velowave Brawny XM Mountain Electric Bike Assembly Tutorial
Uploaded: 2024-07-17T00:00:00-04:00
Duration: 8 min 56 s
Description: This official exact-model tutorial helps you understand the Brawny XM assembly and orientation steps before the first ride. It is not an independent test of range, braking, hills, durability or certification.

Price

Regular price: $3,499.00
Sale price: $3,499.00
Regular price

Shipping calculated at checkout.

Size

17'' 19''

Color Olive Green

Olive Green Dark Blue

Product variants

Available In Stock

Shipping shown at checkout

7-day return request window

StreetRides coordinates warranty support

Ships from a U.S. warehouse

Overview

The Brawny XM is Velowave's full-suspension 26-inch fat-tire e-bike for riders who want a Bafang mid-drive, a removable 48V 20Ah battery and more control on rough surfaces.

Its strongest hardware is paired with a real ownership constraint. Velowave lists 82 lb including battery, so ground-level storage, vehicle transport and a correctly rated rack should be decided before checkout.

Best For

Best for a rider who can store a heavy bike at ground level and wants a published mid-drive, full suspension and 26 x 4.8-inch tires for rough roads, loose surfaces or permitted off-road use.

Choose something else if routine stair carrying, a compact folding footprint, verified exact-model certification paperwork or universal public-path access is a requirement.

Performance

Velowave lists a 48V 1000W Bafang mid-drive, 1200W peak power and 160 Nm (118 lb-ft). The torque sensor, six assist levels, 11-speed rear derailleur and 11-42T cassette are a more relevant trail-use package than a bare top-speed number.

Velowave calls the Brawny XM off-road and lists up to 37 mph pedal assist with 20 mph throttle. Verify your state and local e-bike rules before riding, especially with throttle-equipped or higher-speed settings.

Battery

The removable internal battery is listed as 48V 20Ah, or 960Wh, with LG cells. Velowave specifies a 48V 3A charger and about seven hours to charge.

Velowave claims a 75-mile average pedal-assist range, up to 85 miles at PAS 1 and 60 miles by throttle under favorable level-road conditions. Hills, high assist, speed, cold, your load, tire pressure, and stops all reduce the distance. Terrain sets your real range: flat commutes in Chicago, Dallas, and Minneapolis reach the top of the claim, while hill routes in Seattle, San Francisco, or Pittsburgh land near the bottom. A current replacement-battery price was not published.

Safety & Certification

Velowave lists Tektro hydraulic disc brakes with 180 mm rotors and motor cut-off, an 80-lux front light, a blinking rear light and IPX4 water resistance. These are published hardware specifications, not a measured stopping-distance or waterproof claim.

No exact Brawny XM UL 2849 certificate, public listing or certificate number was found in the reviewed product page and manual. Do not assume general Velowave marketing proves this exact bike. Ask for model-matched documentation when a building, insurer, workplace or campus requires it.

Assembly, Service & Ownership

The exact manual lists the bike, charger box, keys, pedals, lights, spare spokes, spare handle-stem screws, tools and manual. Use the official Brawny XM assembly video and inspect wheel retention, steering, brakes, tire pressure, lights, wiring and fasteners before the first ride.

An 82 lb bike favors ground-level charging and a transport rack rated for the complete setup. A qualified bicycle technician is the right choice when you are not comfortable setting up hydraulic brakes, suspension or a mid-drive bike. Velowave's limited warranty is separate from StreetRides returns.

Specifications

Motor and controls: 48V 1000W Bafang mid-drive, 1200W peak claim, 160 Nm (118 lb-ft) claim, torque sensor, six assist levels, 20 mph throttle claim and configurable up-to-37-mph pedal-assist setting.

Battery and range: removable internal 48V 20Ah, 960Wh lithium-ion battery with LG cells. 48V 3A charger. About seven hours. 75-mile average PAS, up to 85 miles at PAS 1 and 60 miles throttle claims under stated favorable conditions.

Chassis: 26-inch 36H aluminum rims, Kenda 26 x 4.8-inch tires, 100 mm lockout air fork, RockShox rear air spring with 44 mm travel and external rebound adjustment.

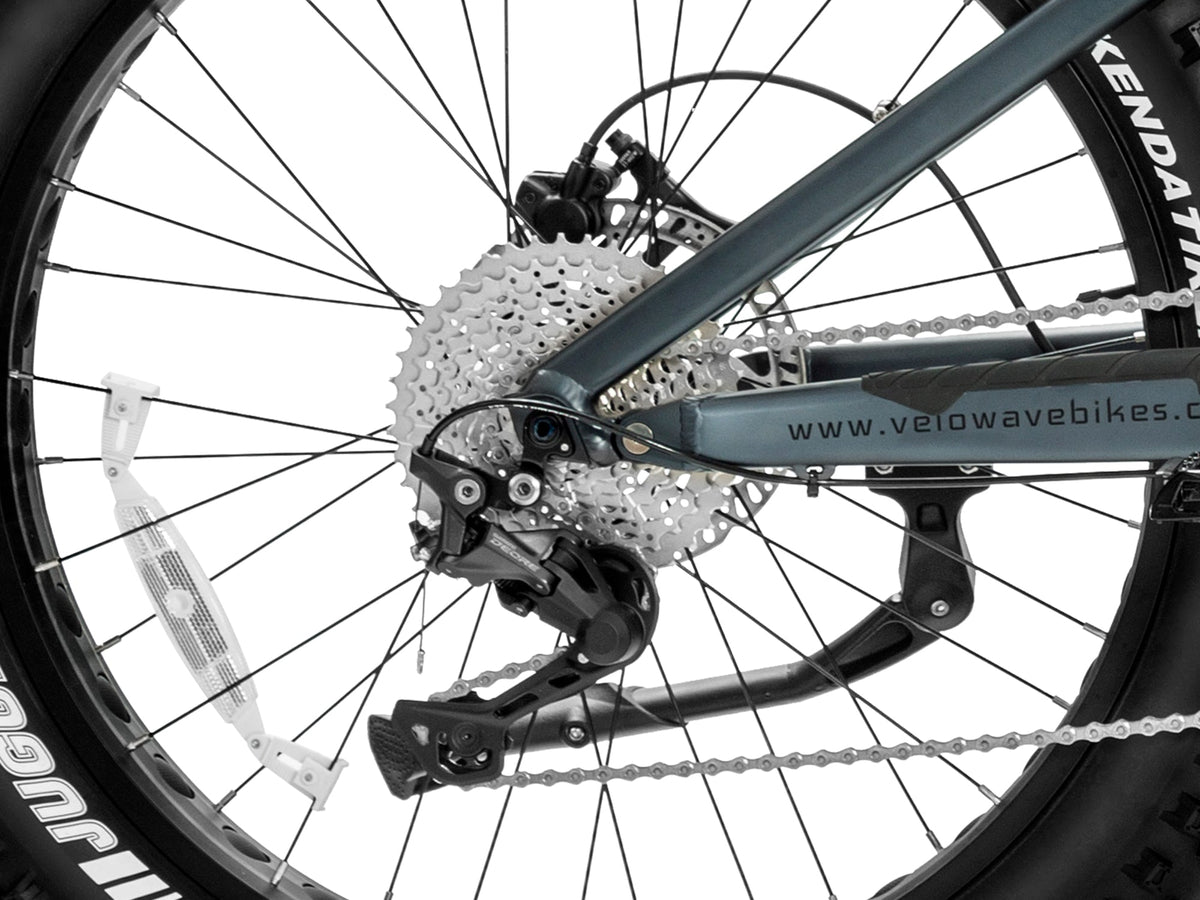

Drivetrain and braking: Shimano Deore RD-M4120 11-speed rear derailleur, Shimano 10-speed thumb shifter, 48T crankset, 11-42T cassette, Tektro hydraulic discs, 180 mm rotors and motor cut-off.

Limits and visibility: 82 lb net bike weight including battery, 11.4 lb battery, 385 lb maximum load including cargo, 80-lux front LED light, blinking rear light and IPX4 rating.

Not published for safe catalog use: exact packaged shipping weight, replacement-battery price and verified exact-model certification. Velowave's official feed lists the same product code for both 19-inch colors.

Honest Verdict

Choose the Brawny XM when a published mid-drive, 960Wh battery, full suspension and 26 x 4.8-inch tires matter more than low weight or easy transport. It is the premium full-suspension choice in this comparison, not a universal answer for every fat-tire shopper.

The reasons to pause are direct: 82 lb including battery, a 37 mph off-road setting that needs a local rules check, conditional range claims and no exact-model certificate located. Heybike Ranger 3.0 Pro better serves folding storage. Cycrown Nomad Pro is the lower-price conventional 26-inch alternative.

Velowave Brawny XM Full-Suspension Electric Bike

Overview
Specifications

STREETRIDES TAKE A full-suspension mid-drive fat bike with 960Wh on tap, balanced by 82 lb ownership and an off-road speed setting.

StreetRides Research Team

Last Reviewed Date: August 12, 2026

KEY ADVANTAGES

Why This Ride Stands Out

Mid-drive power meets real gearing

The published Bafang mid-drive, torque sensor and wide-range cassette suit changing surfaces, but still need routine service.

960Wh needs a route plan

The removable 960Wh battery supports long plans, but Velowave's range figures depend on conditions, speed and assist.

Suspension for rougher surfaces

Published front and rear air suspension helps tune rough-route control, but setup and maintenance remain part of ownership.

Compare your options

Choose the platform before the power headline

These current fat-tire listings separate a full-suspension mid-drive platform, a folding storage option and a conventional lower-price 26-inch alternative. Brawny XM is first because it is the product under review, not because it wins every decision.

Why these products

All three are active StreetRides fat-tire electric-bike listings with meaningful differences in drive layout, suspension, storage format, price and documentation needs.

StreetRides takeaway

Choose Brawny XM when its published mid-drive, full suspension and 960Wh battery are worth 82 lb ownership. Choose Heybike Ranger 3.0 Pro when folding storage leads. Choose Cycrown Nomad Pro when a lower-price conventional 26-inch platform fits better.

Swipe to compare every ride

Choose the platform before the power headline
Comparison criterion	You're viewing Velowave Brawny XM Full-Suspension Electric Bike Regular price $3,499.00 Sale price $3,499.00 Regular price Unit price per Available Best for: A rider who needs a published full-suspension mid-drive fat bike and can manage 82 lb ground-level storage. The high-investment all-terrain option when its heavy storage reality and off-road speed setting fit the purpose. Think twice if: You need a lightweight carry, universal public-route access or exact-model certification paperwork before purchase. View product details	Heybike Ranger 3.0 Pro Heybike Ranger 3.0 Pro Folding Fat-Tire Electric Bike Regular price $1,399.00 Sale price $1,399.00 Regular price ~~$1,999.00~~ Unit price per Available Best for: A buyer whose first constraint is folding storage or vehicle transport at a lower checked listing price. The folding-storage alternative, not an automatic upgrade over a full-size Brawny XM. Think twice if: You want the Brawny's published full-suspension mid-drive platform for rougher routes. View product details	Cycrown Nomad Pro Cycrown Nomad Pro Smart Fat Tire E-Bike Regular price $1,499.99 Sale price $1,499.99 Regular price ~~$1,599.99~~ Unit price per Available Best for: A buyer who wants a lower-price conventional non-folding 26-inch fat-tire alternative. A conventional-platform alternative with similar published battery energy, but a different performance and suspension proposition. Think twice if: The Brawny's mid-drive, full-suspension layout and published off-road capability are the deciding priorities. View product details
Current offer and availability What is available at the current listed price?	$3,499. Olive Green available, Dark Blue sold out Evidence Merchant inventory target: quantity 2 for both Olive Green sizes and 0 for both Dark Blue sizes. All three stop taking orders when stock runs out.	$1,399. Three checked colors available Evidence Current public StreetRides catalog evidence.	$1,499.99. Alpine Green available Evidence Graphite Grey was unavailable in the checked current public catalog.
Motor and road speed What kind of drive and speed claim does each platform publish?	1000W Bafang mid-drive. 37 mph off-road claim Evidence Velowave lists 1200W peak and 160 Nm (118 lb-ft). The configurable 37 mph setting needs a state and local access check.	750W rated, 1400W peak published hub-motor claim Evidence A lower-output folding-platform alternative, not a like-for-like mid-drive comparison.	Conventional torque-sensor fat-tire platform Evidence The Brawny's published mid-drive and off-road speed figure should not be translated into a winner claim.
Battery and claimed range What energy and range claim are published?	48V 20Ah, 960Wh. 75-mile average PAS claim Evidence Velowave also lists up to 85 miles at PAS 1 and 60 miles on throttle under favorable stated conditions.	720Wh published battery Evidence Compare stored energy and platform, then review current range conditions on the alternative listing.	48V 20Ah, about 960Wh published battery Evidence A comparable published energy figure does not guarantee the same range on a different platform.
Weight and portability How does storage and transport change the decision?	82 lb net including battery. Ground-level plan Evidence The 111 lb gross figure is distinct. Exact packaged shipping weight is not published.	Folding 20-inch platform. 75 lb published weight Evidence Folding changes storage and vehicle transport, but 75 lb is still substantial.	Conventional non-folding 26-inch platform Evidence Confirm current net bike weight and vehicle-rack fit on the alternative listing before purchase.
Ride comfort and platform Which frame and suspension layout matches the route?	26 x 4.8-inch tires and full air suspension Evidence Published hardware includes a 100 mm lockout fork and RockShox rear air spring. No comfort winner is claimed.	Folding 20-inch fat-tire platform Evidence Choose it for compact storage priority, not as an automatic replacement for full suspension.	Conventional 26-inch torque-sensor fat-tire option Evidence It is a lower-price conventional alternative, not a like-for-like full-suspension mid-drive build.
Braking system What braking hardware is published?	Tektro hydraulic discs with 180 mm rotors Evidence Power cut-off is listed. Setup, pad condition and rider technique still affect braking.	Confirm current brake specification on the alternative listing Evidence We could not confirm an exact brake specification, so none is listed.	Confirm current brake specification on the alternative listing Evidence We could not confirm an exact brake specification, so none is listed.
Warranty and parts path What support and documentation should a buyer confirm?	Two-year limited manufacturer policy. Exact certification unpublished Evidence Velowave policy terms and exclusions apply. No exact Brawny XM certificate or listing was found.	Published UL 2849 claim and two-year warranty Evidence Confirm current model match, policy terms and parts path directly before ordering.	Published 2-year warranty and UL 2849 claim Evidence Confirm the exact configuration, policy terms, listing and parts path before ordering.

Methodology and sources

Checked 2026-08-12. Velowave primary sources control Brawny XM facts. Current StreetRides public catalog evidence controls alternative listing facts. Manufacturer numbers are not StreetRides tests. Where we could not confirm alternative details, the comparison says to confirm them rather than filling a cell with an assumed value.

Brawny XM has no located exact-model certificate or packaged shipping weight. Availability here comes from the public product page, not from a dealer stock feed. Brake and net-weight fields are left as confirmation items because the sources did not support a fair exact comparison.

Sources

Official Brawny XM live product page : Velowave
Velowave Brawny XM MTB Mountain Electric Bike : Velowave
Brawny XM owner's manual : Velowave
Velowave warranty policy, two years : Velowave
StreetRides Heybike Ranger 3.0 Pro public product page : StreetRides US
StreetRides Cycrown Nomad Pro public product page : StreetRides US

Information checked Aug 12, 2026

A closer look

See the product in action

Official assembly support: Velowave Electric Bikes

See the exact Brawny XM setup sequence

This official exact-model tutorial helps you understand the Brawny XM assembly and orientation steps before the first ride. It is not an independent test of range, braking, hills, durability or certification.

Watch assembly tutorial Official source Aug 12, 2026

Straight answers based on current specifications, independent testing, and US ownership needs.

Frequently Asked Questions

Velowave claims a 75-mile average pedal-assist range, up to 85 miles at PAS 1 and 60 miles on throttle. Those are manufacturer figures, not a StreetRides route test.

The published conditions include level road, a 165 lb (75 kg) load, 86 F and 70 percent humidity. Hills, high speed, high assist, cold, load, tire pressure and stops can reduce your result. Learn the bike on your own route before planning a maximum-distance trip.

Velowave lists 82 lb net including battery. That makes ground-level storage, a secure charging spot and a rack rated for the complete setup more realistic than routine stair carrying.

Velowave also lists an 11.4 lb battery and a separate 111 lb gross figure. Neither number is a published packaged shipping weight. Measure doorways, plan the loading route and confirm your rack's per-bike capacity before ordering.

Do not assume so. Velowave calls the Brawny XM off-road, lists up to 37 mph pedal assist and 20 mph throttle, and says the maximum speed is configurable.

Verify your state and local e-bike rules before riding, especially with throttle-equipped or higher-speed settings. Check the specific street, trail or path authority as well as any registration, equipment and access requirements.

The reviewed current Brawny XM product page and manual did not provide an exact UL 2849 certificate, independent listing or certificate number. General brand marketing is not enough to make an exact-model certification claim.

If a building, insurer, employer, campus or local authority needs named certification, request a model-matched document in writing before ordering.

The manual lists the bike, charger box, keys, pedals, lights, spare spokes, spare handle-stem screws, tools and manual. Velowave also provides an exact-model assembly video.

Before the first ride, check wheel retention, steering, hydraulic brakes, tire pressure, lights, wiring and fasteners. Use a qualified technician if you are not comfortable with setup or future mid-drive, suspension and brake work. Keep the serial number, keys, charger details and service records.

Olive Green is stocked in 17-inch and 19-inch frame sizes. Dark Blue is sold out in both sizes.

Availability follows Brawny's published stock signals and can change without notice. Check the size selector before you order.
