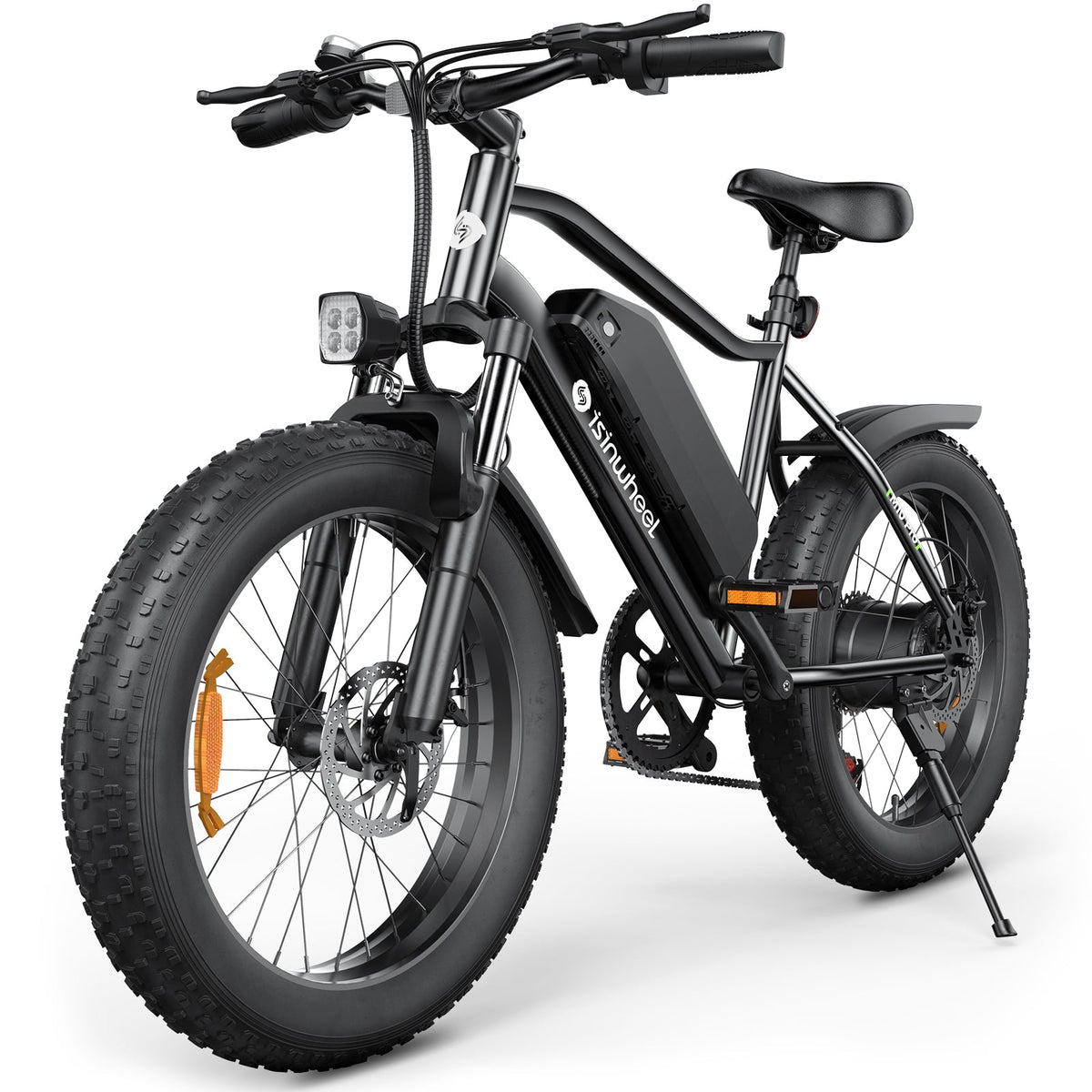

isinwheel M10Pro Fat Tire Electric Bike

The M10Pro makes sense for riders roughly 5 ft 3 to 6 ft 8 who want 20 x 4-inch fat tires, a 330 lb maximum load, and a compact frame that is easier to maneuver than the full-size M60. It is a practical fit for short commutes, weekend paths, and errands where the included rear rack earns its keep.

Skip it if you need a lightweight bike for stairs, a certified electrical system documented by certificate number, confirmed hydraulic brakes, or a bike for aggressive technical trails. At 67.1 lb, it still needs ground-floor or garage storage. Verify local e-bike rules because the product page does not clearly separate throttle and pedal-assist top speeds.

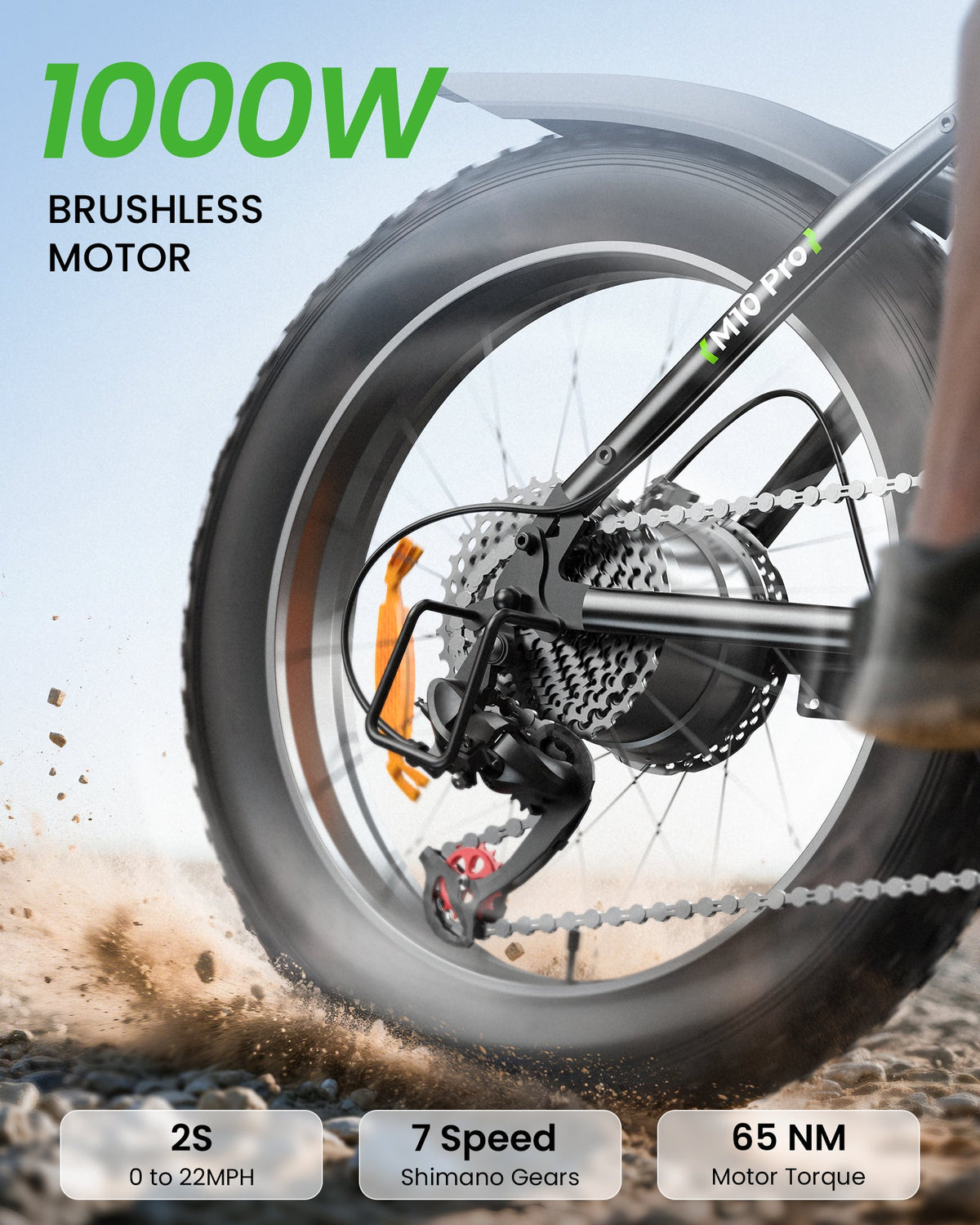

isinwheel publishes a 1000W peak motor, 65 Nm (48 lb-ft) of torque, and a 22 mph top speed. The page does not publish the continuous motor rating or separate throttle speed from pedal-assist speed, so StreetRides does not assign a U.S. e-bike class from the listing alone.

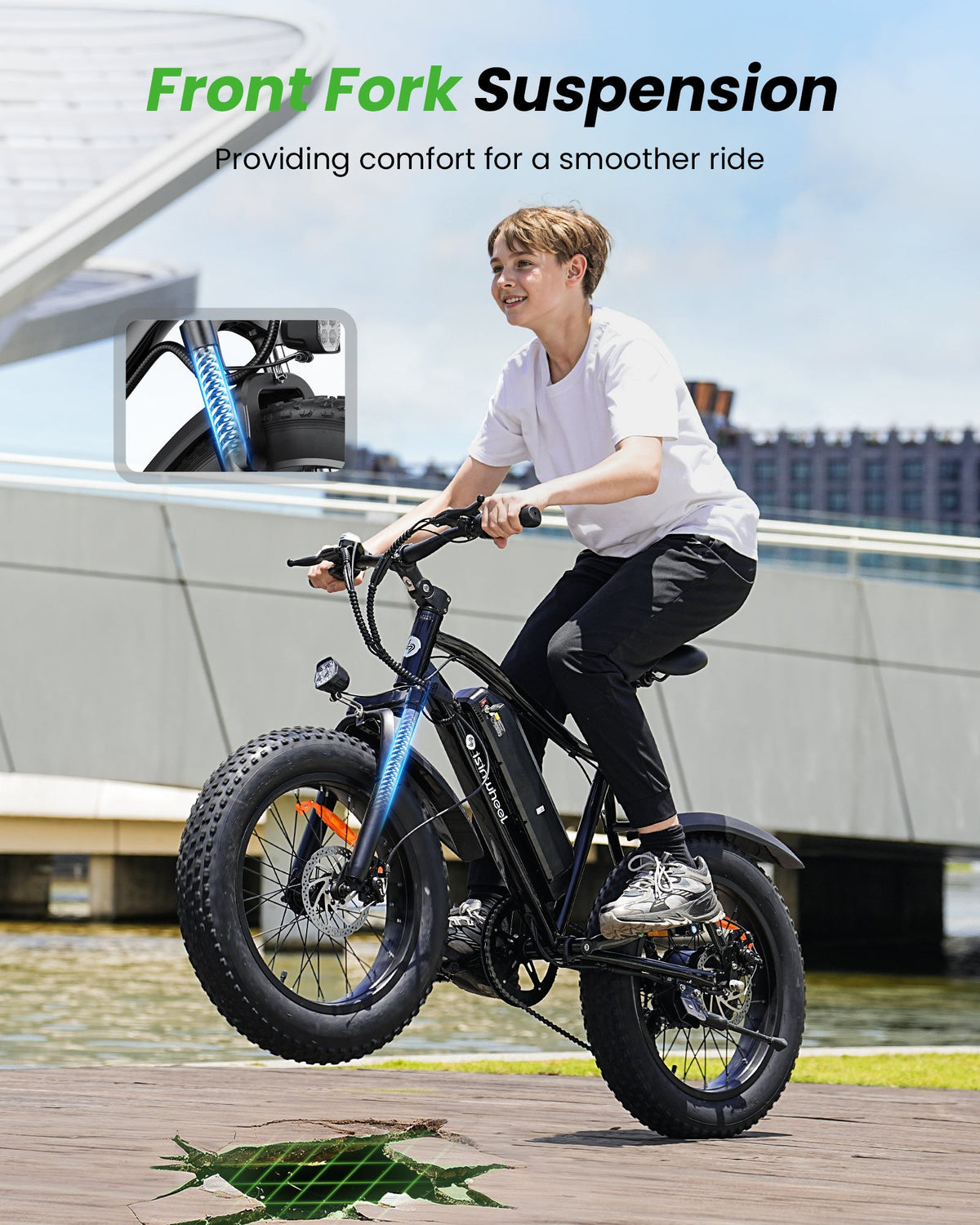

The 20 x 4-inch fat tires add grip and low-speed stability on broken pavement, packed gravel, grass, and firm sand. Front fork suspension handles small impacts, while Shimano 7-speed gearing gives you mechanical options after battery assist tapers. This is a mixed-surface recreational and commuter setup, not a full-suspension trail bike.

Verify state, county, city, campus, and trail rules before riding. Speed limits and throttle access can differ across U.S. jurisdictions.

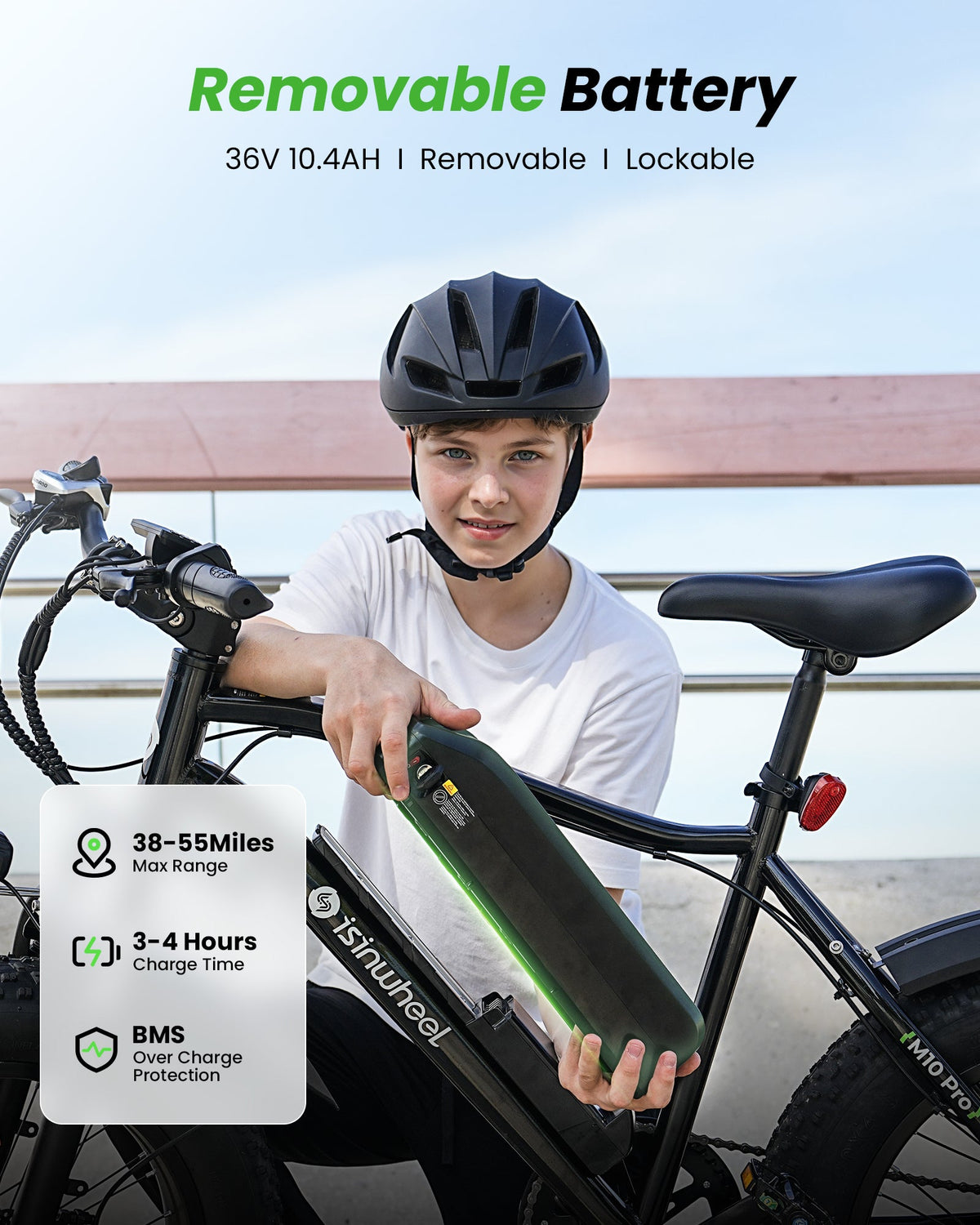

The removable, lockable battery is rated at 36V 10.4Ah, which calculates to about 374Wh. isinwheel publishes a 38 to 55 mile range band and a 3 to 4 hour charge time.

Treat 55 miles as a best-case manufacturer claim. A 67.1 lb fat tire bike uses more energy on hills, soft surfaces, cold mornings, low tire pressure, and high assist. Plan conservatively until your own route produces repeatable results.

Use only the supplied charger, charge in a dry and ventilated area, remain present during charging, and never charge while sleeping. Ask isinwheel for the current replacement-battery price and lead time before relying on the bike as daily transportation. Terrain sets your real range: flat commutes in Chicago, Dallas, and Minneapolis reach the top of the claim, while hill routes in Seattle, San Francisco, or Pittsburgh land near the bottom.

isinwheel publishes an IP65 resistance rating for the M10Pro. That supports dust and water-jet resistance under the claimed test conditions, but it is not permission to submerge the bike, pressure-wash electrical parts, or leave the battery exposed outdoors.

The current product page does not publish UL 2849 electrical-system certification or a certificate number. Disc brake rotors are visible in manufacturer media, but hydraulic or mechanical actuation and rotor diameter are not specified. Confirm both certification and brake hardware in writing if they are purchase requirements.

Wear a properly fitted bicycle helmet, inspect tires, brakes, steering, frame, battery latch, lights, and cables before every ride, and use the supplied charger. Follow local e-bike classification, speed, helmet, and trail-access rules.

The M10Pro ships partially assembled. Expect to align and secure the handlebar, install the front wheel, pedals, and accessories, then verify tire pressure, axle security, brake alignment, shifting, light operation, and the battery lock before the first powered ride. Follow the included manual rather than a generic assembly video.

Mechanical components such as the Shimano 7-speed drivetrain, tires, tubes, and disc-brake wear parts can usually be serviced by a U.S. bicycle shop. The motor, controller, display, wiring harness, charger, and battery are model-specific and should be handled through isinwheel support during warranty coverage.

The manufacturer publishes one-year warranty service. StreetRides US returns: request within 7 days of delivery. All approved returns have a 20% restocking fee and customer-paid return shipping. Eligibility also requires the item to be unused, unridden, unassembled, and in its original packaging. Keep the box, order number, serial number, charger label, battery label, and dated service records.

Drive system. 1000W peak motor, 65 Nm (48 lb-ft) manufacturer claim, up to 22 mph. Continuous motor rating and separate throttle speed are not published.

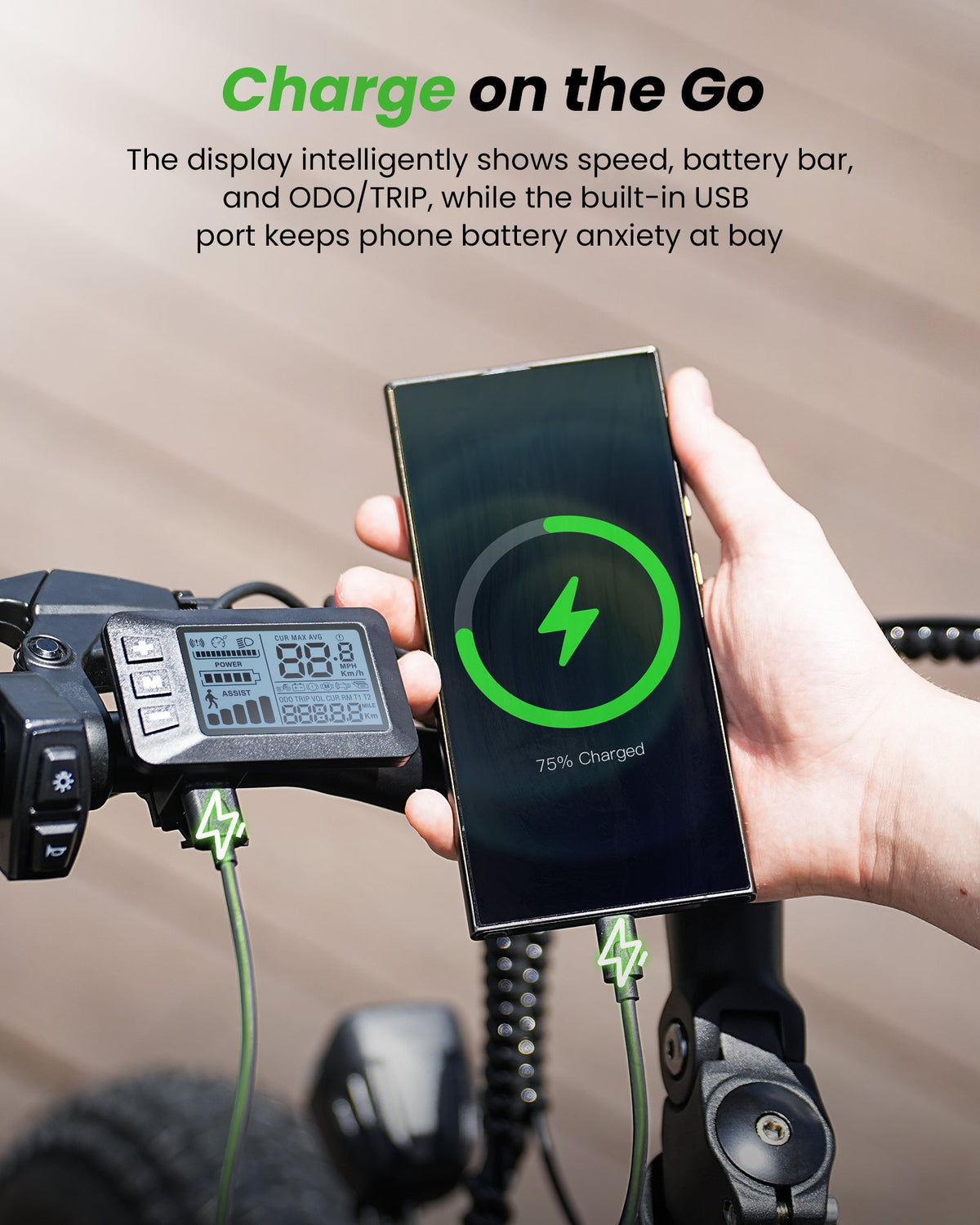

Battery and charging. Removable and lockable 36V 10.4Ah battery, approximately 374Wh. Manufacturer range: 38 to 55 miles. Charge time: 3 to 4 hours. USB charging port is shown in manufacturer media.

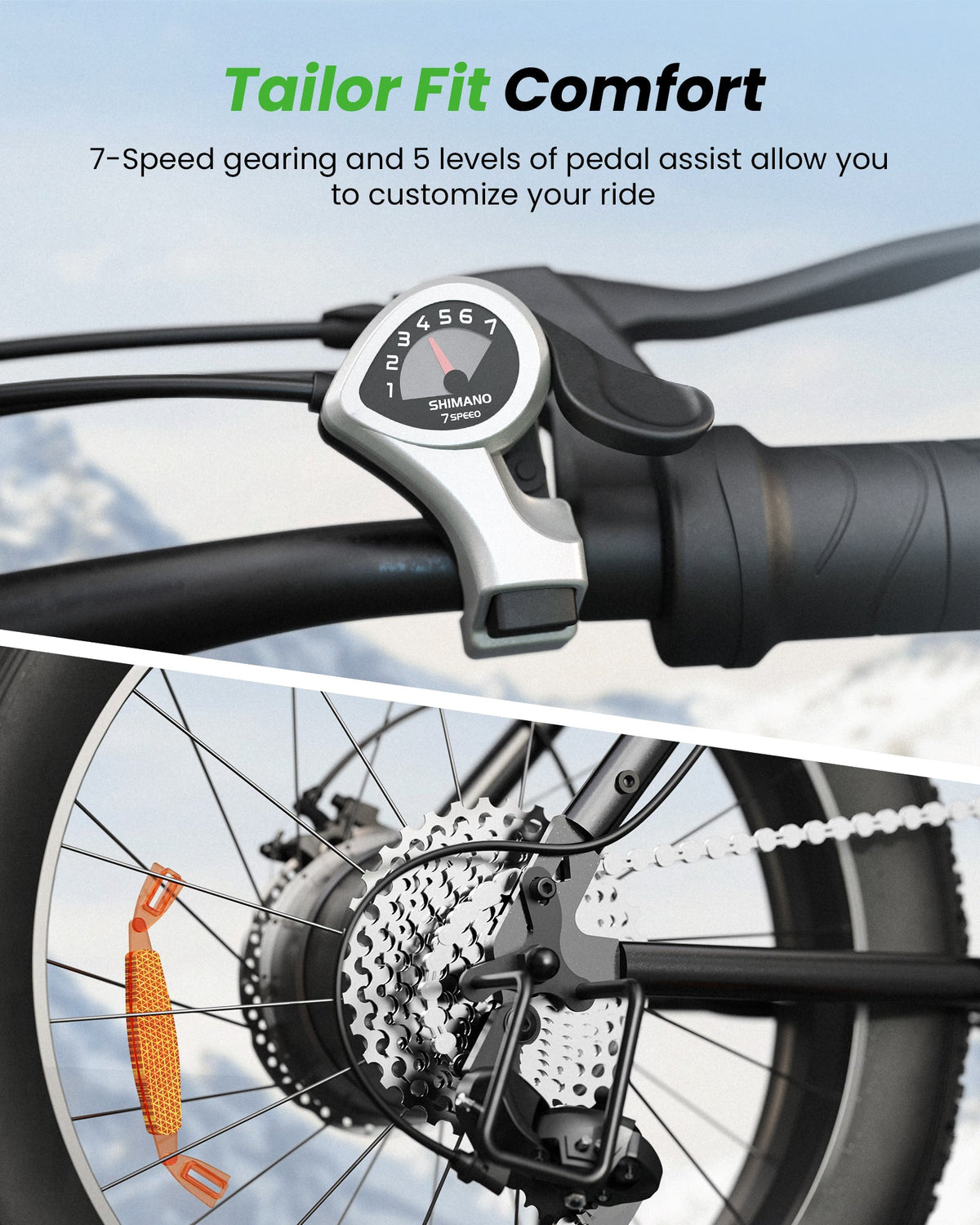

Tires, suspension, and drivetrain. 20 x 4-inch fat tires. Front fork suspension. Shimano 7-speed gearing. Rear suspension is not listed.

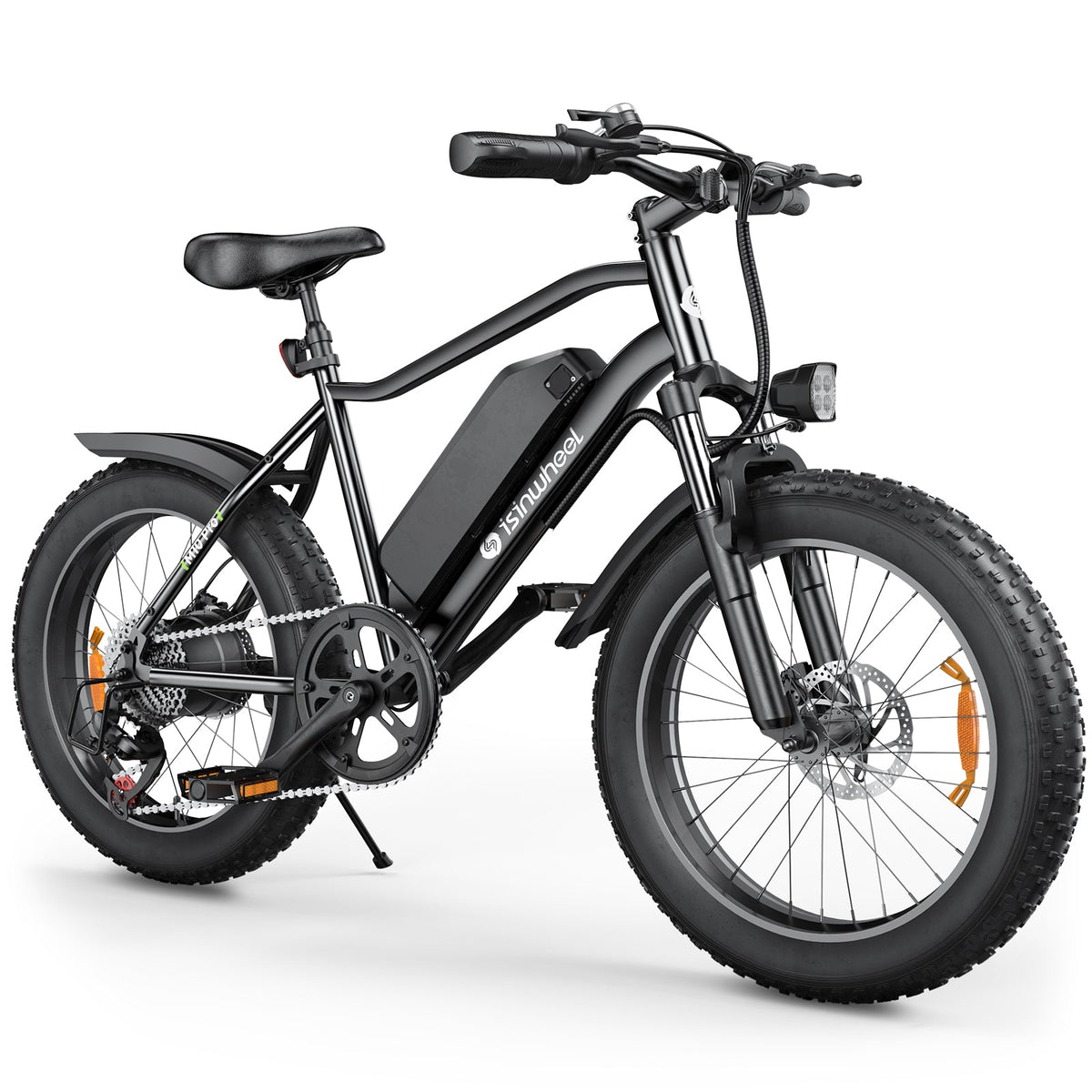

Frame and fit. Aluminum integrated frame. Suggested rider height: 5 ft 3 to 6 ft 8. Maximum load: 330 lb. Published bike weight: 67.1 lb. Rear rack included.

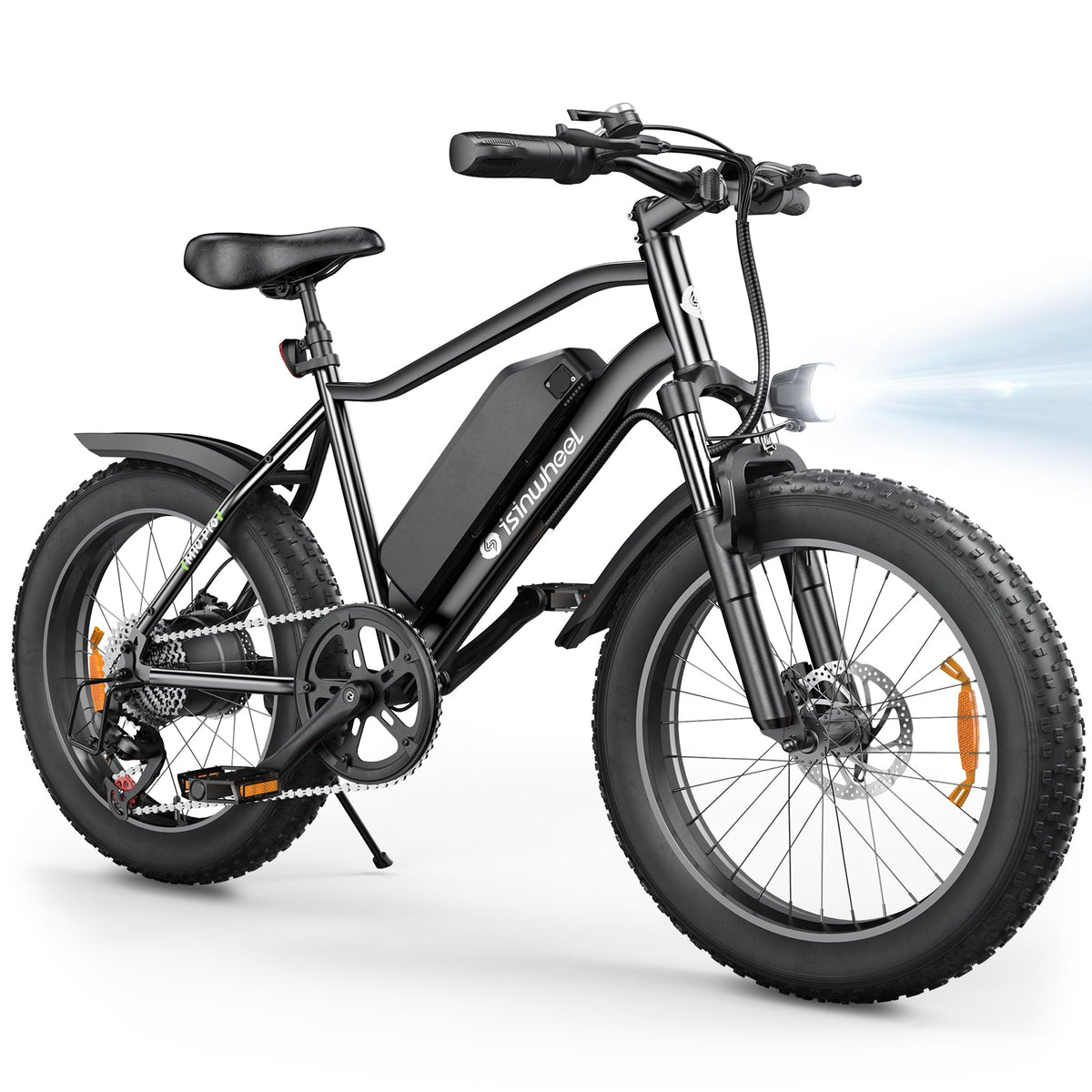

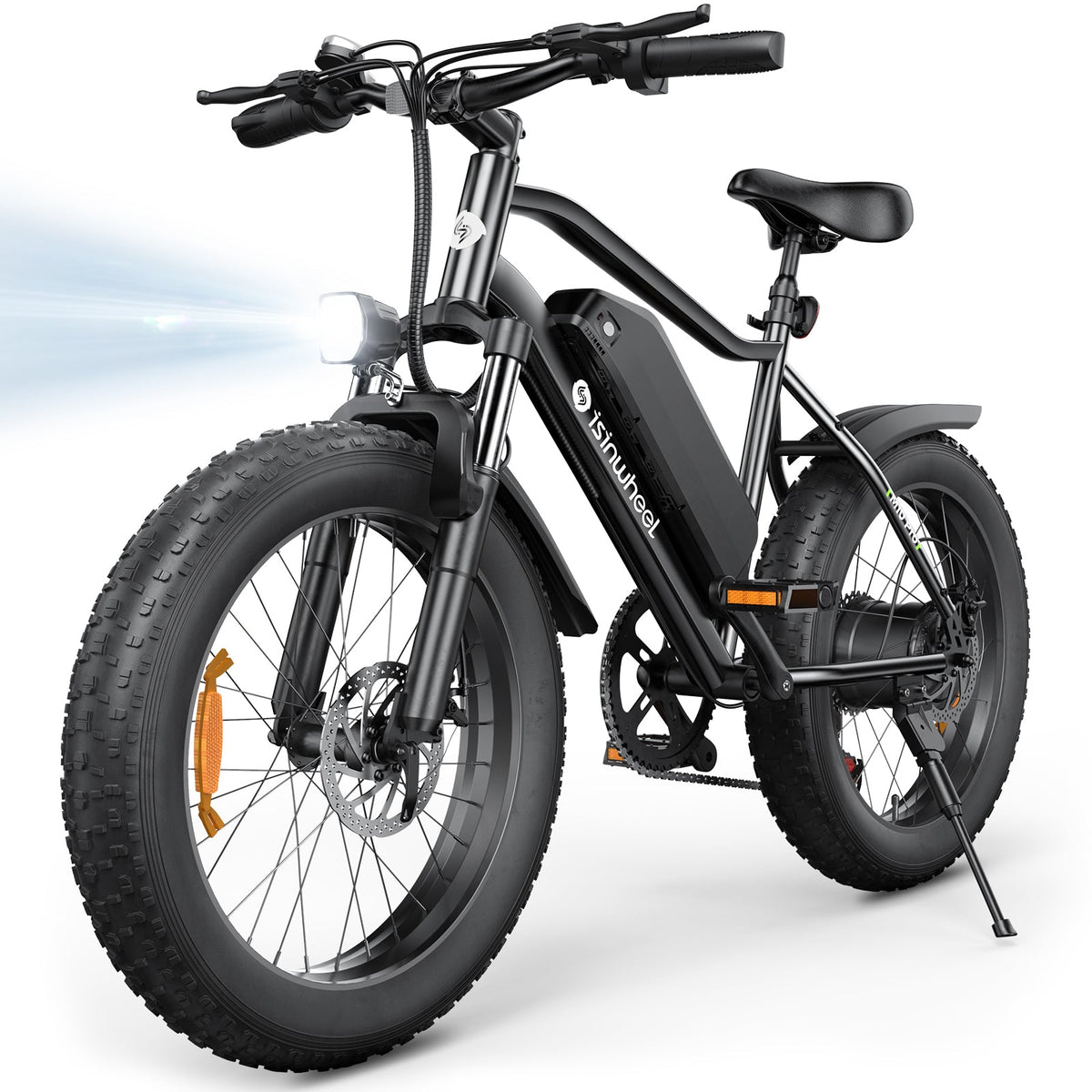

Braking and visibility. Disc brake rotors and front light shown. Brake actuation type, rotor diameter, taillight function, and turn signals are not published.

Resistance and support. IP65 manufacturer rating. UL 2849 certification not published. One-year manufacturer warranty service. StreetRides US returns: request within 7 days of delivery. All approved returns have a 20% restocking fee and customer-paid return shipping.

The M10Pro is the value pick in this comparison. It delivers a compact fat tire frame, front suspension, a removable 374Wh battery, useful 7-speed gearing, and a rear rack at a lower price than the U7 and M60.

Its limits are not hidden. The 67.1 lb weight is substantial for stairs, the 55-mile range is a best-case claim, and the page leaves continuous motor power, brake actuation, rotor size, and electrical certification unresolved. It is better suited to paved and light mixed-surface riding than aggressive trails.

Confidence: medium. Core dimensions, weight, battery, speed, and drivetrain come from current manufacturer material, and an exact-model hands-on video supports basic ride context. Long-term durability, real-world range, braking distance, and certification remain unverified.
