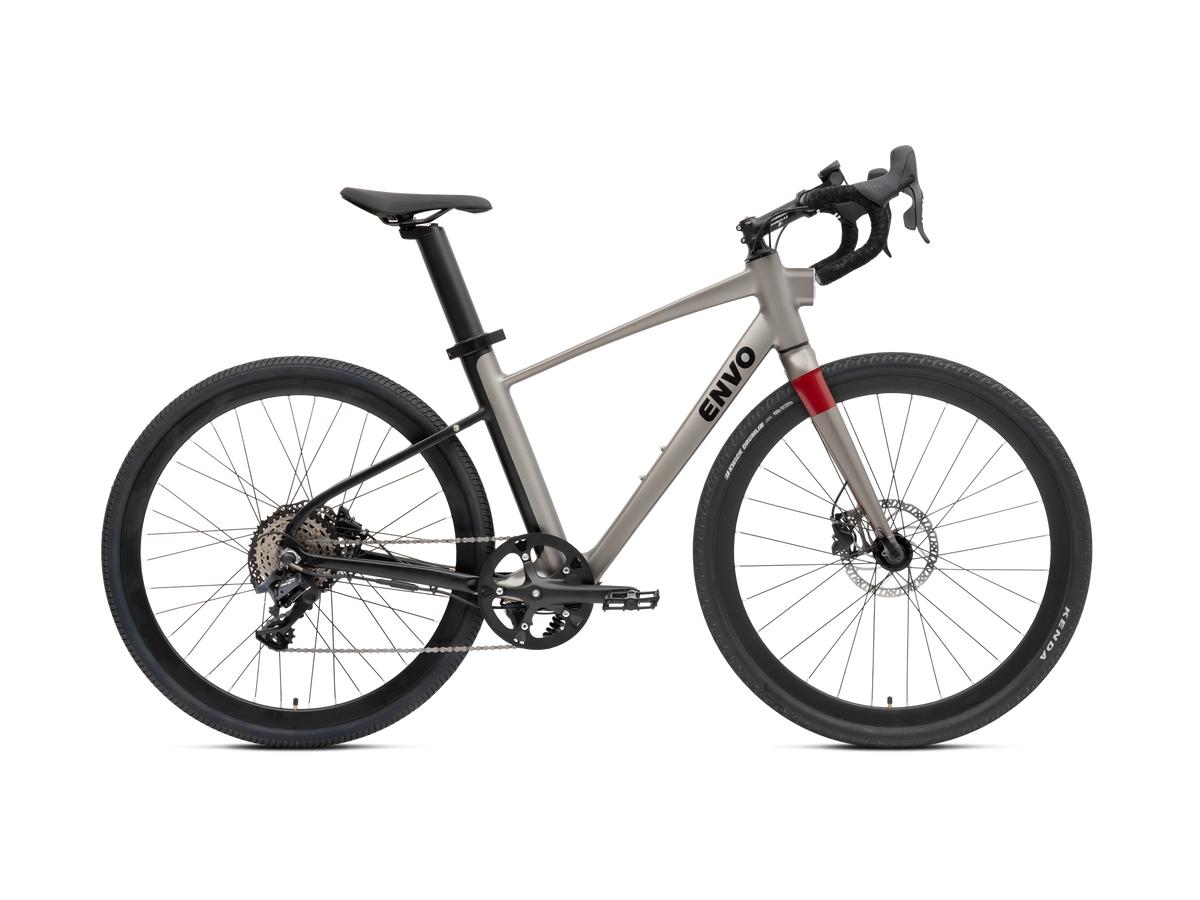

ENVO Stax DropBar Electric Road Bike official ENVO product image 1

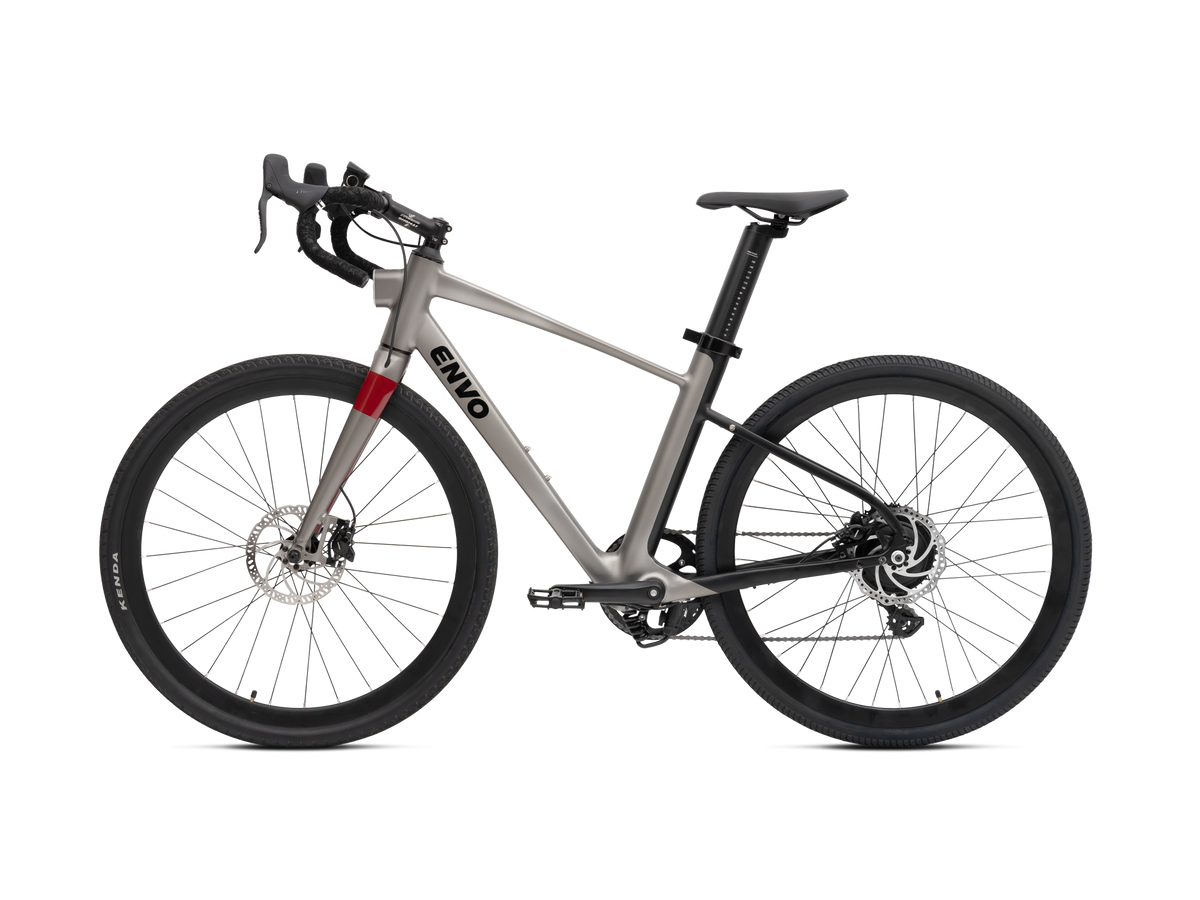

ENVO Stax DropBar Electric Road Bike official ENVO product image 2

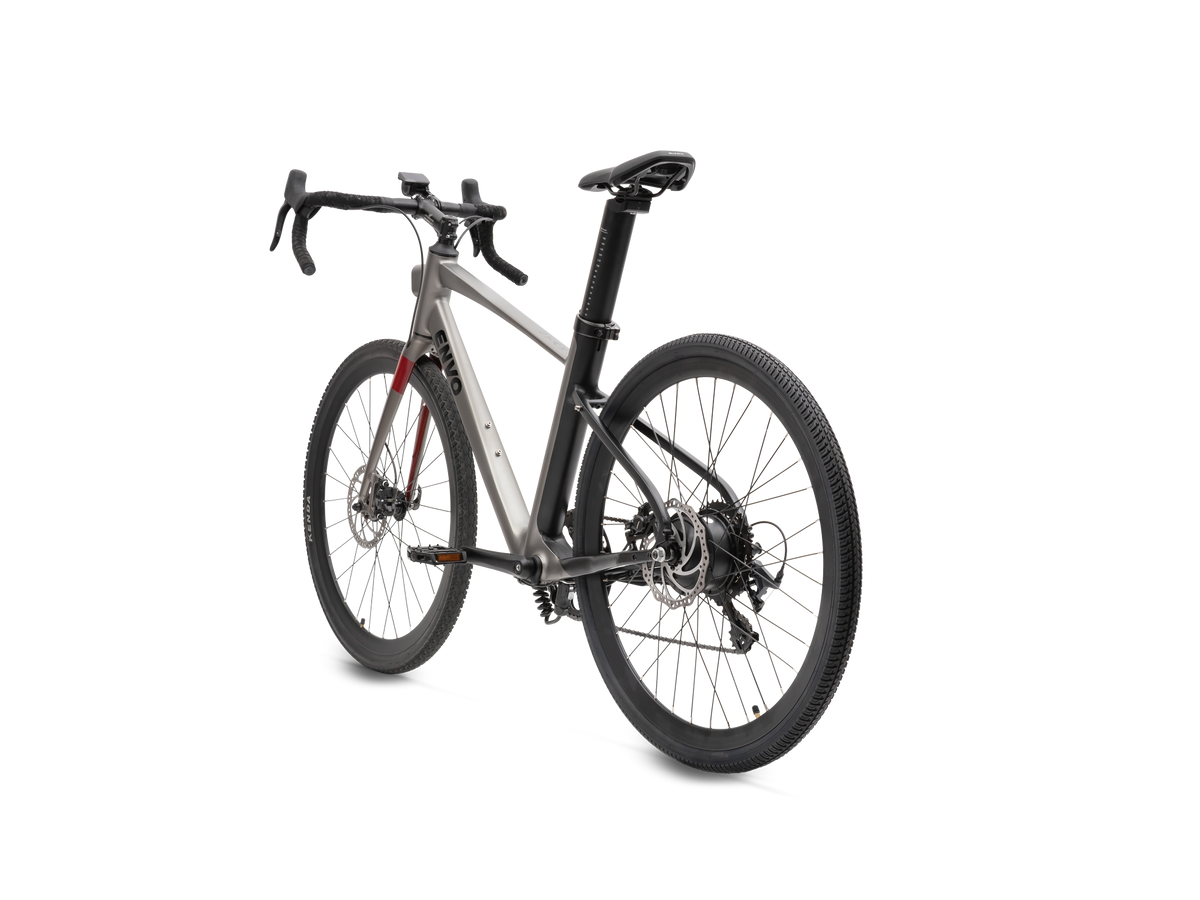

ENVO Stax DropBar Electric Road Bike official ENVO product image 3

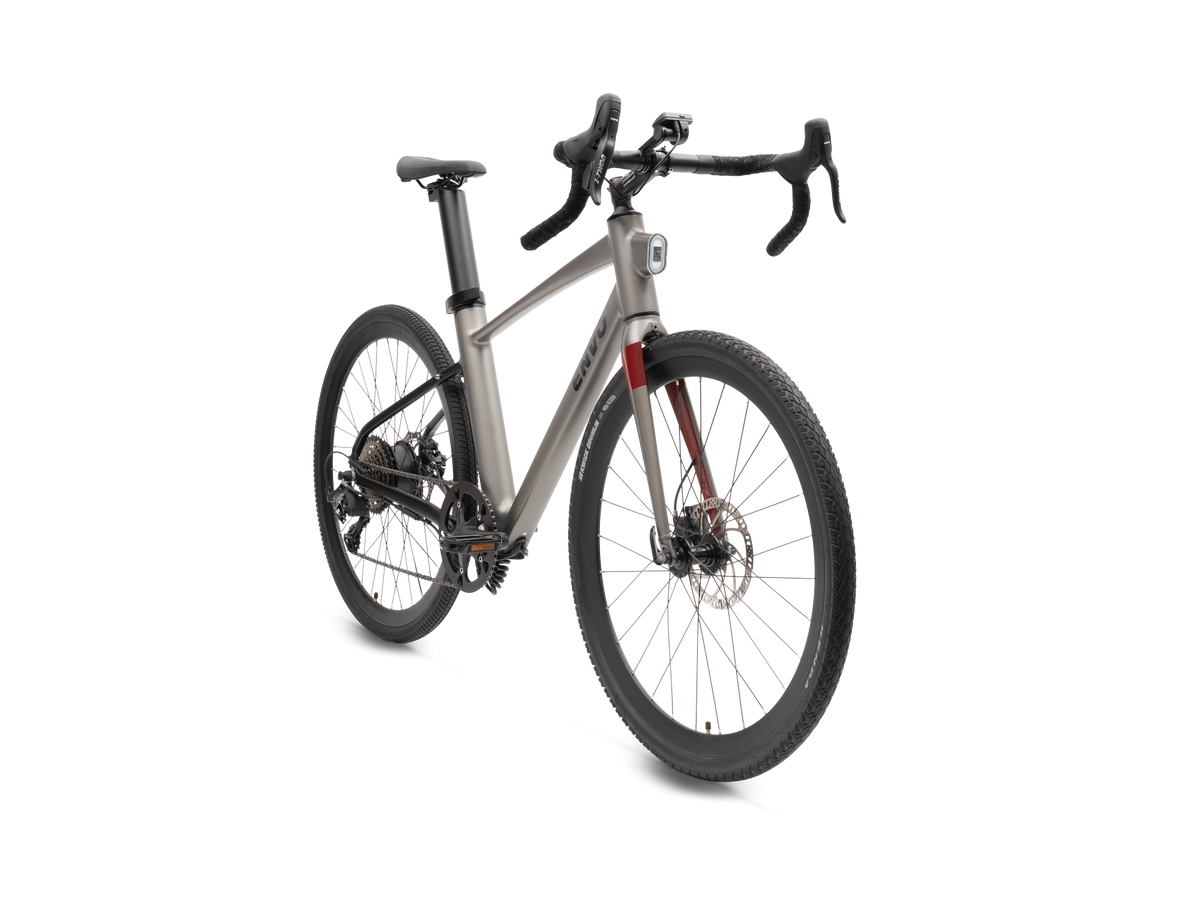

ENVO Stax DropBar Electric Road Bike official ENVO product image 4

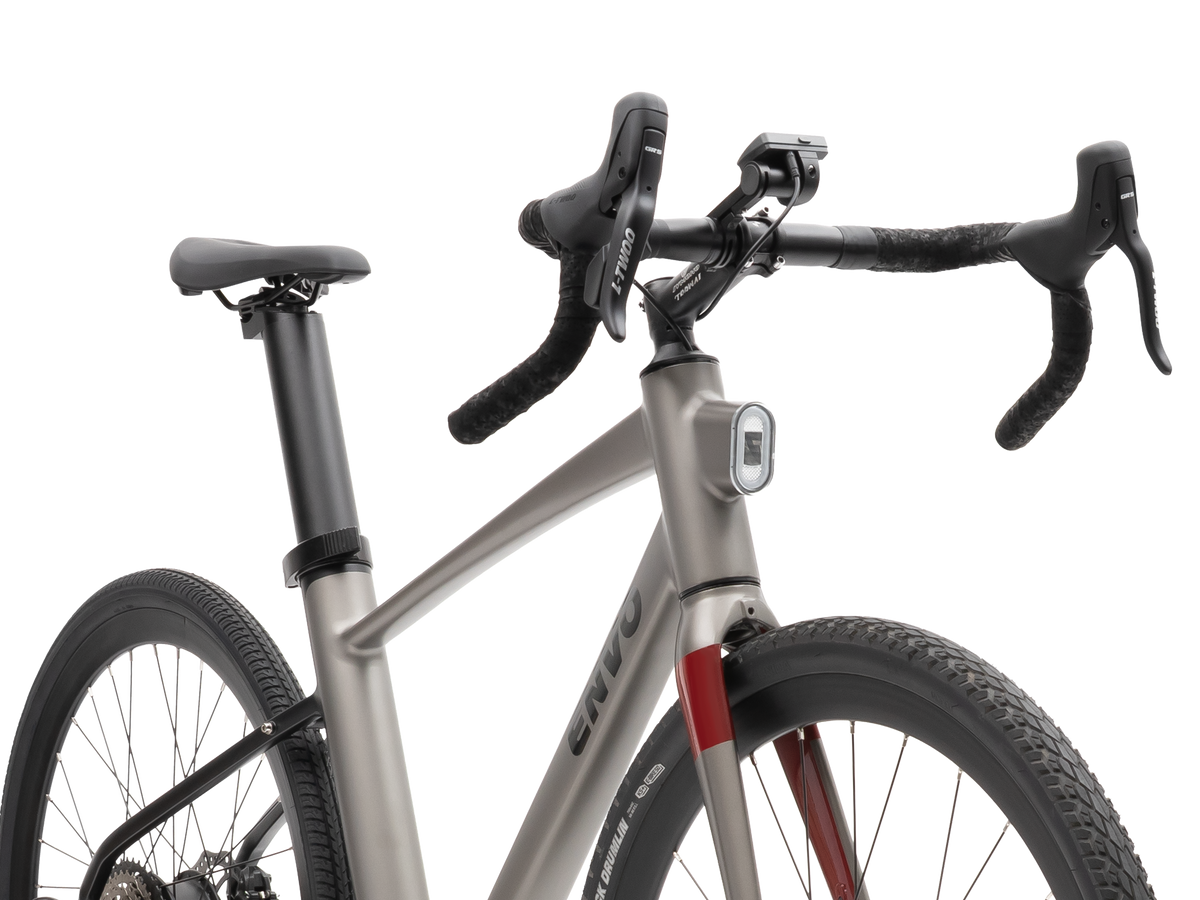

ENVO Stax DropBar Electric Road Bike official ENVO product image 5

ENVO Stax DropBar Electric Road Bike official ENVO product image 6

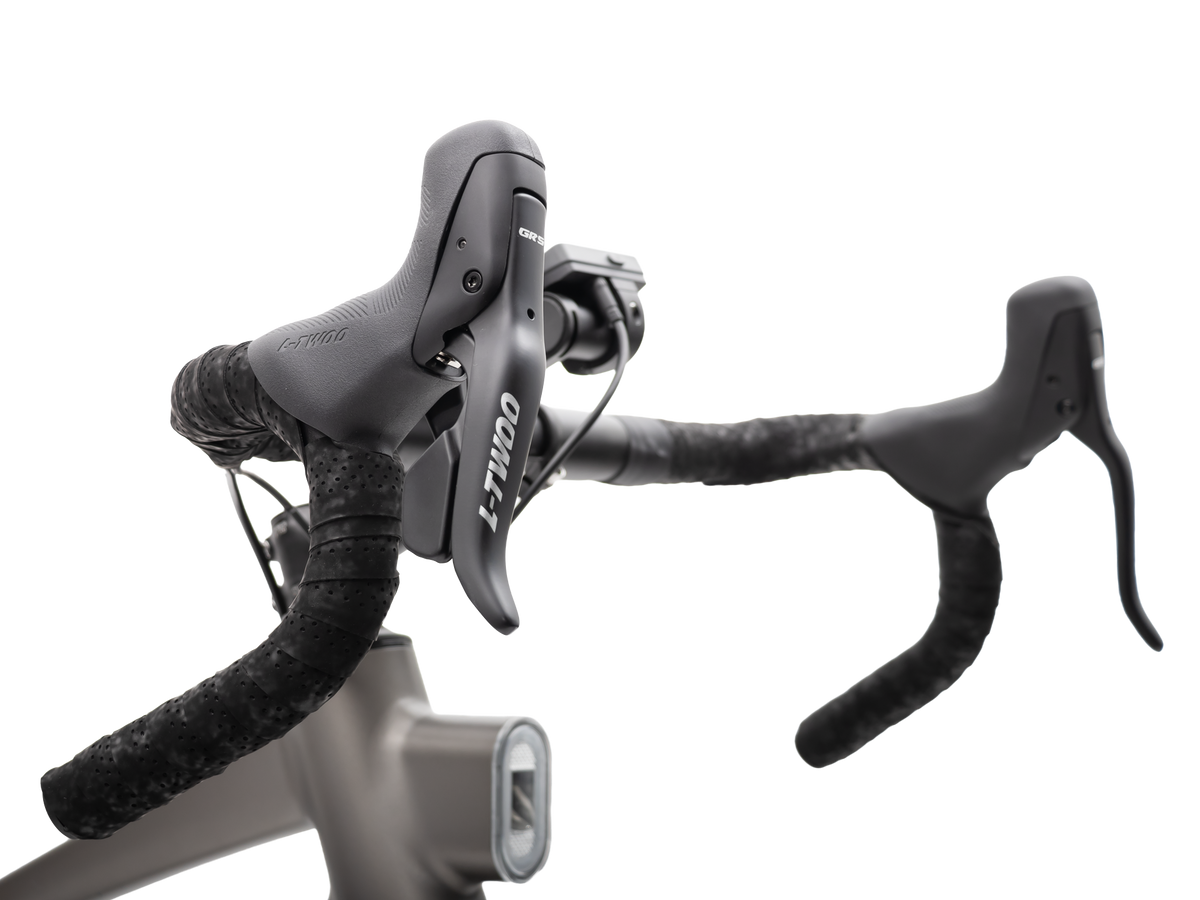

ENVO Stax DropBar Electric Road Bike official ENVO product image 7

ENVO Stax DropBar Electric Road Bike official ENVO product image 8

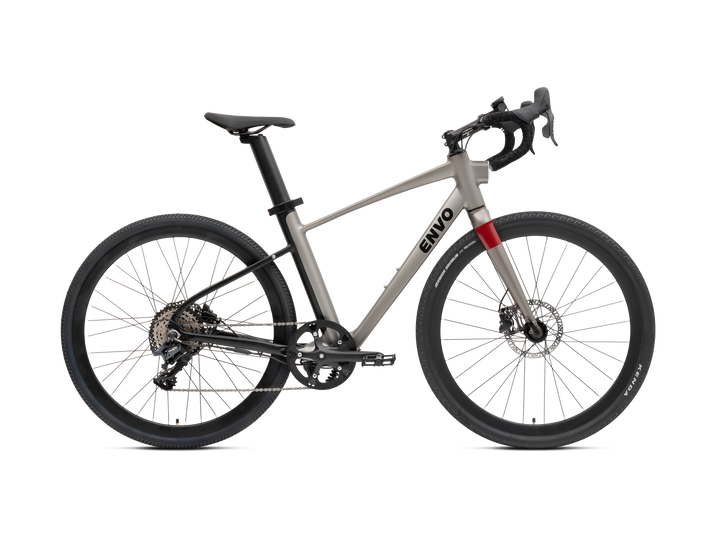

ENVO Stax DropBar Electric Road Bike

Price

Regular price: $1,984.00
Sale price: $1,984.00
Regular price

Shipping calculated at checkout.

Available In Stock

Shipping shown at checkout

7-day return request window

StreetRides coordinates warranty support

Ships from a U.S. warehouse

Overview

The Stax DropBar is ENVO's light all-road answer: a 42 lb (19 kg) 700C bike with flared drop bars, 40C tires, a rigid fork, 36V 12.8Ah (461Wh) LG battery hidden in the seatpost, torque-sensor pedal assist and 500W rear hub motor claim. It is deliberately not a suspension gravel bike. The point is an ordinary-bike silhouette and multiple hand positions without the bulk normally attached to a 461Wh battery.

Best For

Choose the DropBar for an experienced road, city or light-gravel rider who wants drop-bar control, several hand positions and a realistic carry-weight advantage over 60-to-70 lb utility e-bikes. Its rigid fork and 700C x 40C tires suit pavement, rail trails and maintained hardpack, not technical singletrack. Pick the flat-bar Stax for an upright cockpit or the Stax Pro for suspension and a dual-battery option.

Performance

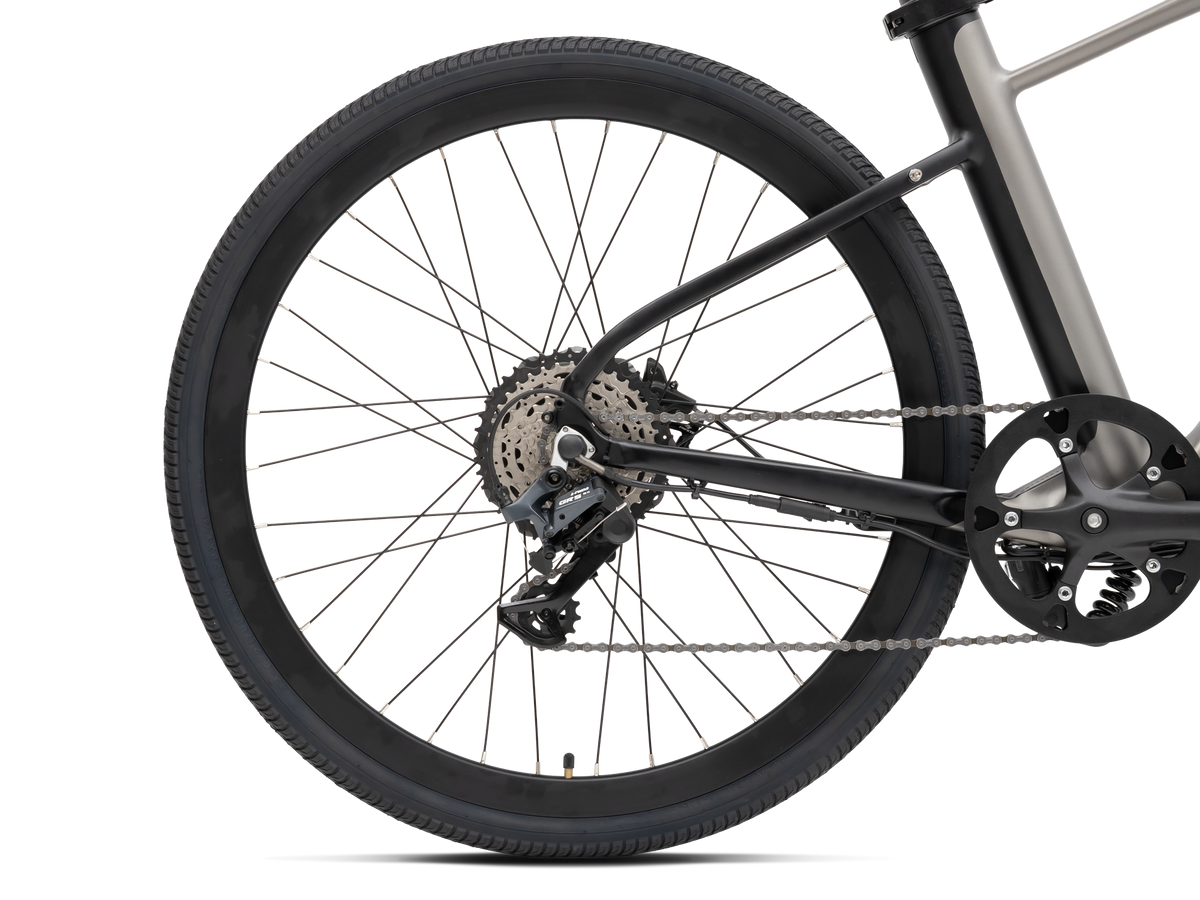

ENVO specifies a 500W rear hub motor, 60 Nm (44 lb-ft) maximum torque, 20 mph top assisted speed and a 73 mm torque-sensor bottom bracket. There is no throttle: assistance follows pedaling input. The 9-speed LTWOO drivetrain with an 11-42T cassette and 42T chainring gives a mechanical fallback when the battery is low. The rigid fork saves weight but does not soften rough surfaces. Tire pressure becomes a meaningful comfort adjustment.

Battery

The 36V 12.8Ah LG pack is 461Wh and sits inside the seatpost. ENVO claims up to 62 miles (100 km). It also says your weight, terrain, wind, and temperature reduce that maximum. Terrain sets your real range: flat commutes in Chicago, Dallas, and Minneapolis reach the top of the claim, while hill routes in Seattle, San Francisco, or Pittsburgh land near the bottom. The current page calls both the battery pack and 36V/2A charger UL-certified components. That is not presented as a complete-bike UL 2849 certification. Keep charging dry and attended, and bring the removable battery indoors in cold conditions.

Safety & Certification

ENVO identifies hydraulic disc brakes, a torque sensor and a pedal-assist-only layout. The DropBar page says its battery and charger are UL-certified components, but does not publish a complete-system UL 2849 claim, so StreetRides does not make one. The bike's 20 mph assist ceiling does not override local path or road rules. Inspect bar/stem fasteners, brakes, tires, wheels, the seatpost battery latch and lights before a first ride.

Assembly, Service & Ownership

Drop bars reward a fit check. ENVO publishes one frame size with 389 mm reach and 595 mm stack. Have a knowledgeable rider or shop assess reach, saddle height and hand position before a long commute. The page lists fender clearance and rear-carrier mounts, plus a 9-speed drivetrain and integrated headlight. StreetRides policies govern the order. Package shipping weight is not stated and stays blank.

Specifications

Published Stax DropBar data: 42 lb (19 kg). 500W rear hub motor. 60 Nm (44 lb-ft) torque. 20 mph assisted-speed statement. 36V 12.8Ah LG 461Wh seatpost battery. Up to 62 miles (100 km) range claim. 36V/2A charger. 700C x 40C tires. 420 mm flared drop bar. 6061-T6 hydroformed alloy frame. Rigid fork. Hydraulic disc brakes. 9-speed LTWOO drivetrain with 11-42T cassette. 389 mm reach and 595 mm stack. Shipping weight and model-specific whole-system UL claim are not published.

Honest Verdict

The DropBar is the distinctive Stax choice because it retains a 461Wh battery at 42 lb while offering a genuinely road-bike-like cockpit. That makes it attractive for city riders with stairs, transit or an apartment. The dealbreaker is not motor power. It is fit and surface choice. If you need suspension, a throttle or technical-trail control, this is the wrong bike.

ENVO Stax DropBar Electric Road Bike

Overview
Specifications

STREETRIDES TAKE A 42 lb drop-bar all-road e-bike with 461Wh in the seatpost, torque-sensor assist and 700C x 40C tires. Choose it for fit and surface, not for suspension.

StreetRides Research Team

Last Reviewed Date: August 20, 2026

KEY ADVANTAGES

Why This Ride Stands Out

42 lb bike with 461Wh battery

The seatpost battery lets the DropBar keep a light, clean profile without a small-token battery.

Torque-sensor, pedal-assist-only drive

No throttle: the 500W rear hub follows pedal pressure, which suits riders seeking a bike-like feel.

Drop bars and 700C x 40C tires

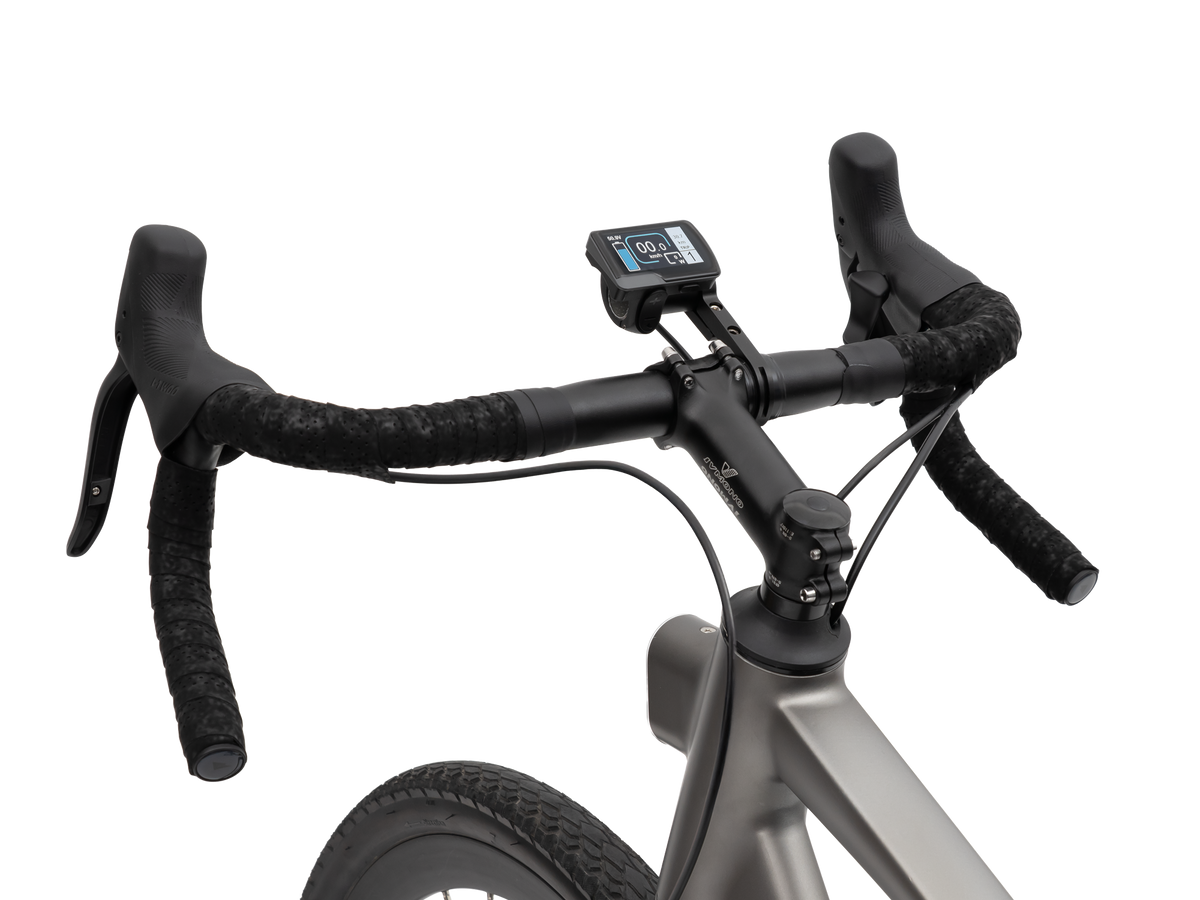

Three hand positions and a 12-degree flare help on long city and hardpack routes. The fork is deliberately rigid.

Compare your options

Three ENVO options, compared by the facts that change the purchase

This comparison uses the current official ENVO product pages. It keeps conditional range claims conditional and leaves values blank when the relevant page does not publish them.

Why these products

These are the closest current StreetRides ENVO alternatives for the same broad use question.

StreetRides takeaway

Choose by riding surface, frame access, carry/load needs and evidence confidence, not just by the biggest advertised range figure.

Swipe to compare every ride

Three ENVO options, compared by the facts that change the purchase
Comparison criterion	You're viewing ENVO Stax DropBar Electric Road Bike Regular price $1,984.00 Sale price $1,984.00 Regular price Unit price per Available Best for: Choose the DropBar for an experienced road, city or light-gravel rider who wants drop-bar control, several hand positions and a realistic carry-weight advantage over 60-to-70 lb utility e-bikes. Its rigid fork and 700C x 40C tires suit pavement, rail trails and maintained hardpack, not technical singletrack. Pick the flat-bar Stax for an upright cockpit or the Stax Pro for suspension and a dual-battery option. A 42 lb drop-bar all-road e-bike with 461Wh in the seatpost, torque-sensor assist and 700C x 40C tires. Choose it for fit and surface, not for suspension. Think twice if: The DropBar is the distinctive Stax choice because it retains a 461Wh battery at 42 lb while offering a genuinely road-bike-like cockpit. That makes it attractive for city riders with stairs, transit or an apartment. The dealbreaker is not motor power. It is fit and surface choice. If you need suspension, a throttle or technical-trail control, this is the wrong bike. View product details	ENVO Stax Pro Electric Road Bike ENVO Stax Pro Electric Road Bike Regular price $2,449.00 Sale price $2,449.00 Regular price Unit price per Available Best for: Choose the Stax Pro if a light hybrid bike with a little front compliance is more useful than the DropBar's rigid road format. It is for city streets, path-connected commutes and maintained mixed surfaces, not a substitute for a long-travel mountain bike. The published 42 lb weight is without accessories, so include rack, fender and lock choices in any carry or transit plan. A 42 lb hybrid-style Stax with 25 mm fork travel, 460Wh battery and a 62-mile maximum claim. Confirm the dual-battery configuration before relying on it. Think twice if: The Stax Pro is the sensible Stax branch for someone who needs some fork compliance, 27.5-inch hybrid tires and the possibility of extended range without moving into a heavy utility platform. It is more versatile than the DropBar on broken pavement, but its dual-battery promise needs present-tense confirmation and its 42 lb figure excludes accessories. Buy it for its hybrid comfort profile, not because a maximum range claim makes every route easy. View product details	ENVO Stax Electric Road Bike ENVO Stax Electric Road Bike Regular price $2,279.00 Sale price $2,279.00 Regular price Unit price per Available Best for: Pick the Stax for paved commuting, recreational road riding and firm multi-use paths where 700C x 40C tires and a flat bar make sense. It suits riders who prefer upright control and do not need a throttle. The DropBar provides additional hand positions and a different cockpit. The Pro adds 25 mm fork travel and thumb-throttle language. Do not choose this rigid-format bike for technical trails or unmaintained rocky routes. A lean 700C commuter with 460Wh removable battery, torque-sensor assist and hydraulic discs. Best for paved city and path mileage, not rough trails. Think twice if: The flat-bar Stax is for you if you want an e-bike that still reads and rides like a lean commuter bicycle. Its strong points are the 460Wh battery, torque sensor, wide 700C tires and 9-speed gearing. Its limitations are intentional: no suspension, no published whole-system UL claim and a maximum range that assumes favorable conditions. It is the tidy urban choice, not a universal terrain machine. View product details
Motor and speed What motor and speed claims are actually published?	ENVO lists a 500W rear hub motor, 60 Nm (44 lb-ft) maximum torque and a 20 mph (32 km/h) assisted speed statement. Evidence This is a manufacturer-published configuration or capability claim, not a route-access decision.	ENVO lists a 36V 500W rear motor and describes pedal assist with a thumb throttle. The page's top spec block publishes 80 Nm (59 lb-ft) maximum torque. Evidence This is a manufacturer-published configuration or capability claim, not a route-access decision.	The current Stax page publishes a 36V 500W rear motor, torque-sensor pedal assist and a top spec-block statement of 80 Nm (59 lb-ft) maximum torque. Evidence This is a manufacturer-published configuration or capability claim, not a route-access decision.
Battery and range What battery and conditional range claim are published?	36V 12.8Ah LG cell pack (461Wh) in the seatpost. ENVO claims up to 62 miles (100 km)/62 miles and says the pack plus 36V/2A charger are UL-certified components. Evidence Maximum range is conditional. We leave battery information blank when ENVO does not publish it.	ENVO lists a removable 460Wh battery, up to 62 miles (100 km)/62 miles maximum range and a dual-battery option up to 124 miles (200 km). Exact dual-battery availability should be confirmed. Evidence Maximum range is conditional. We leave battery information blank when ENVO does not publish it.	ENVO lists a removable 460Wh battery and up to 62 miles (100 km)/62 miles maximum range. The page says it can charge on or off the bike. Evidence Maximum range is conditional. We leave battery information blank when ENVO does not publish it.
Fit, weight and load Which size, weight or payload figures affect the purchase?	Single 700C frame size with ENVO-published 389 mm reach, 595 mm stack, 1059 mm wheelbase, 42 lb (19 kg) weight and 700C x 40C tires. Evidence Published fit/load evidence is retained. Missing values are not estimated.	ENVO lists 42 lb (20 kg) without accessories, 27.5-inch hybrid tires and a 25 mm mono-shock front fork. A formal rider-height range is not published on this page. Evidence Published fit/load evidence is retained. Missing values are not estimated.	The current page lists 700C x 40 mm tires and a 6061-T6 hydroformed aluminum frame. Exact current bike weight and formal rider-height range are not published in its technical block. Evidence Published fit/load evidence is retained. Missing values are not estimated.
Use and ownership What context or uncertainty should you resolve?	A 42 lb drop-bar all-road e-bike with 461Wh in the seatpost, torque-sensor assist and 700C x 40C tires. Choose it for fit and surface, not for suspension. Evidence Check your local rules and confirm the open questions listed above before buying.	A 42 lb hybrid-style Stax with 25 mm fork travel, 460Wh battery and a 62-mile maximum claim. Confirm the dual-battery configuration before relying on it. Evidence Check your local rules and confirm the open questions listed above before buying.	A lean 700C commuter with 460Wh removable battery, torque-sensor assist and hydraulic discs. Best for paved city and path mileage, not rough trails. Evidence Check your local rules and confirm the open questions listed above before buying.

Methodology and sources

Official ENVO US product pages and storefront availability, rechecked on August 20, 2026. Manufacturer claims are not independent tests.

Each entry is linked to its model-specific ENVO source record.

Sources

ENVO Stax DropBar Electric Road Bike official ENVO product page : ENVO Drive

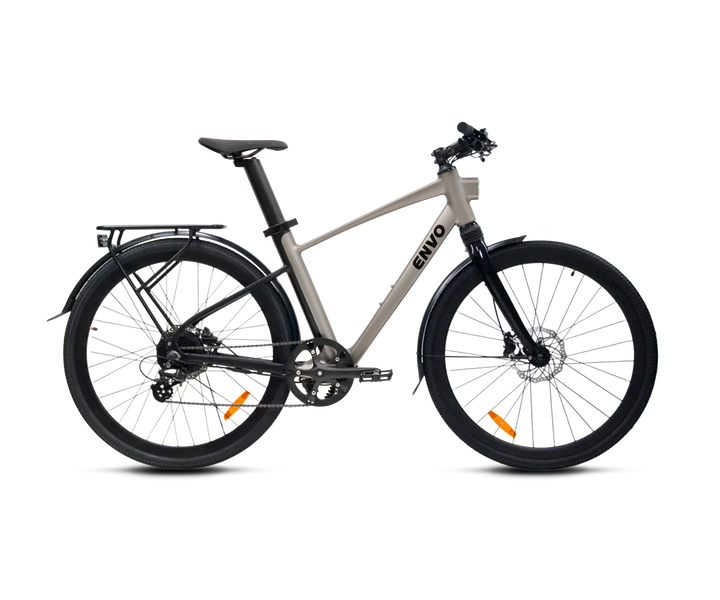

ENVO Stax Pro Electric Road Bike official ENVO product page : ENVO Drive
ENVO Stax Electric Road Bike official ENVO product page : ENVO Drive

Information checked Aug 20, 2026

Straight answers based on current specifications, independent testing, and US ownership needs.

Frequently Asked Questions

ENVO publishes 36V 12.8Ah LG cell pack (461Wh) in the seatpost. ENVO claims up to 62 miles (100 km)/62 miles and says the pack plus 36V/2A charger are UL-certified components.. The maximum figure assumes favorable conditions. Hills, wind, assistance level, temperature and rider mass change the result.

The DropBar and flat-bar Stax pages describe torque-sensor pedal-assist-only systems. The Stax Pro page additionally describes a thumb throttle. Confirm the exact delivered configuration before ordering.

ENVO publishes battery or charger component certification language on some Stax pages, but not a complete-model UL 2849 system claim. StreetRides does not infer one.

Use the DropBar for a rigid drop-bar all-road format, the flat-bar Stax for paved/firm-path commuting, and the Pro when its 27.5-inch hybrid tires and 25 mm fork travel fit the route better.

Check tire pressure, wheels, bar/stem fasteners, brake response, lights, battery latch and fit before a low-speed familiarization ride.
